Fan Module-Radiator Cooling No. 1

Component ID: 73

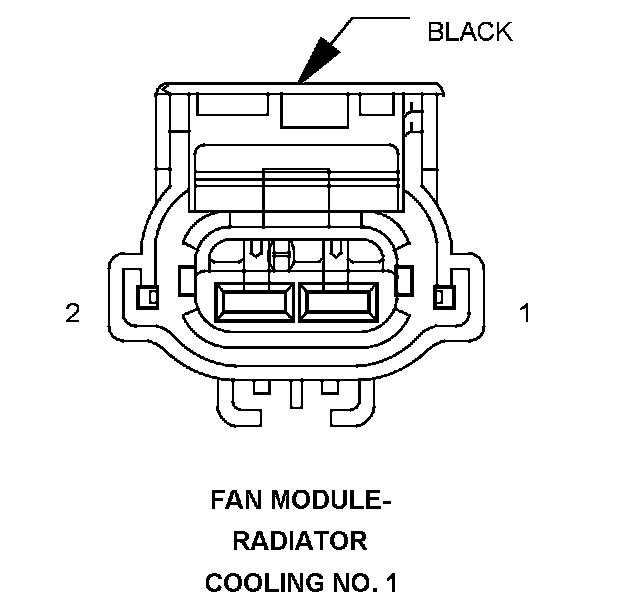

Component : FAN MODULE-RADIATOR COOLING NO. 1

Connector:
Name : FAN MODULE-RADIATOR COOLING NO. 1
Color : BLACK
# of pins : 2




Pin Circuit Description
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z823 12BK/DG GROUND

Component Location - 5
