Power Trunk / Liftgate Control Module

Component ID: 188
Component : MODULE-POWER LIFTGATE

Connector:
Name : MODULE-POWER LIFTGATE C1
Color :
# of pins : 12




Pin Circuit Description
1 Q204 20OR/DG POSITION SENSOR SIGNAL 1
2 Q203 20OR/TN POSITION SENSOR SUPPLY
3 - -
4 Q201 18OR/LG LIFTGATE CLUTCH DRIVER
5 Q88 14TN/BR LIFTGATE OPEN DRIVER
6 Q89 14TN/OR LIFTGATE CLOSE DRIVER
7 Q205 20OR/DB POSITION SENSOR SIGNAL 2
8 - -
9 - -
10 - -
11 - -
12 Q51 20OR FULL OPEN SWITCH SENSE

Component Location - 28

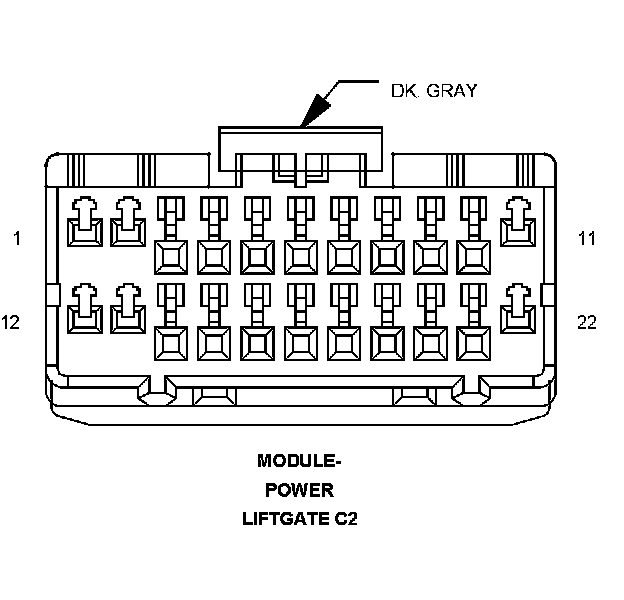

Connector:
Name : MODULE-POWER LIFTGATE C2
Color : DK. GRAY
# of pins : 22




Pin Circuit Description
1 - -
2 - -
3 - -
4 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
5 - -
6 Q75 20OR/LB LEFT PINCH SENSOR SIGNAL
7 - -
8 - -
9 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
10 - -
11 Q85 16TN/WT LIFTGATE LATCH RELEASE DRIVER
12 - -
13 Q901 20OR/VT LOGIC GROUND
14 - -
15 - -
16 - -
17 D54 20WT CAN B BUS(-)
18 D55 20WT/OR CAN B BUS(+)
19 Q94 22TN/LG LIFTGATE CHIME DRIVER
20 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
21 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
22 Q84 16TN/GY LIFTGATE LATCH CINCH DRIVER

Component Location - 28

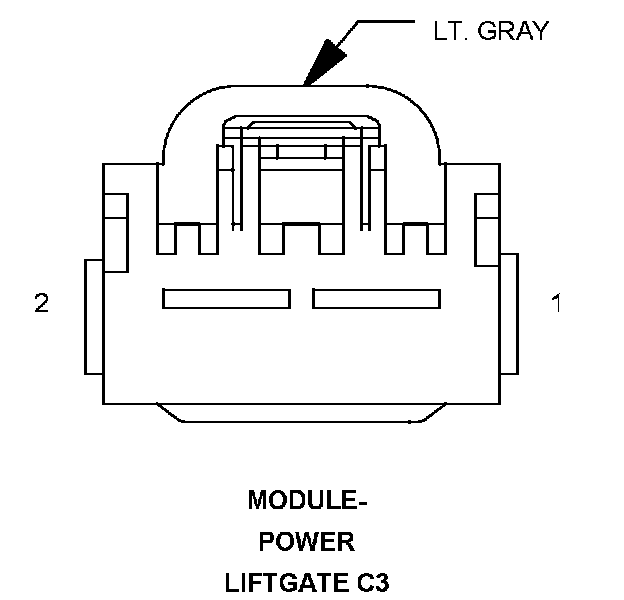

Connector:
Name : MODULE-POWER LIFTGATE C3
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 Z125 12BK/OR GROUND
2 A115 12YL/RD FUSED B(+)

Component Location - 28
