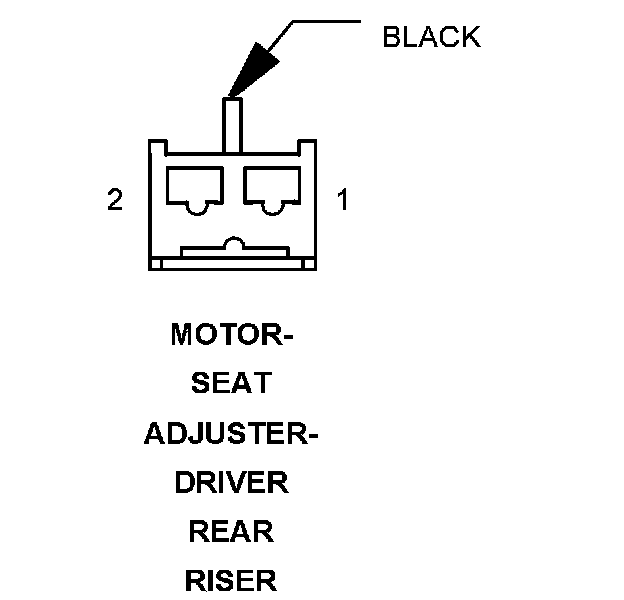

Motor-Seat Adjuster-Driver Rear Riser

Component ID: 201
Component : MOTOR-SEAT ADJUSTER-DRIVER REAR RISER

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER REAR RISER
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P113 14LG/VT DRIVER SEAT REAR DOWN DRIVER
2 P111 14LG/YL DRIVER SEAT REAR UP DRIVER

Component Location - 37
