Power Door Lock Switch

Component ID: 397
Component : SWITCH-LIFTGATE RELEASE

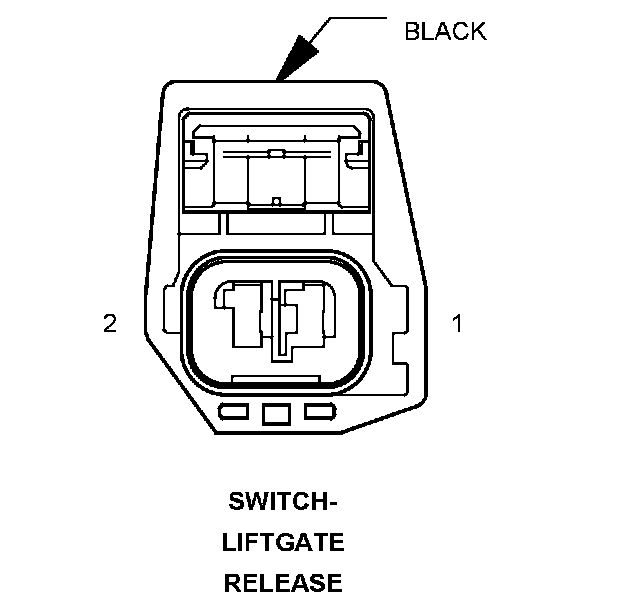

Connector:
Name : SWITCH-LIFTGATE RELEASE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
2 Z87 20BK/LG GROUND
2 Q901 20OR/VT LOGIC GROUND

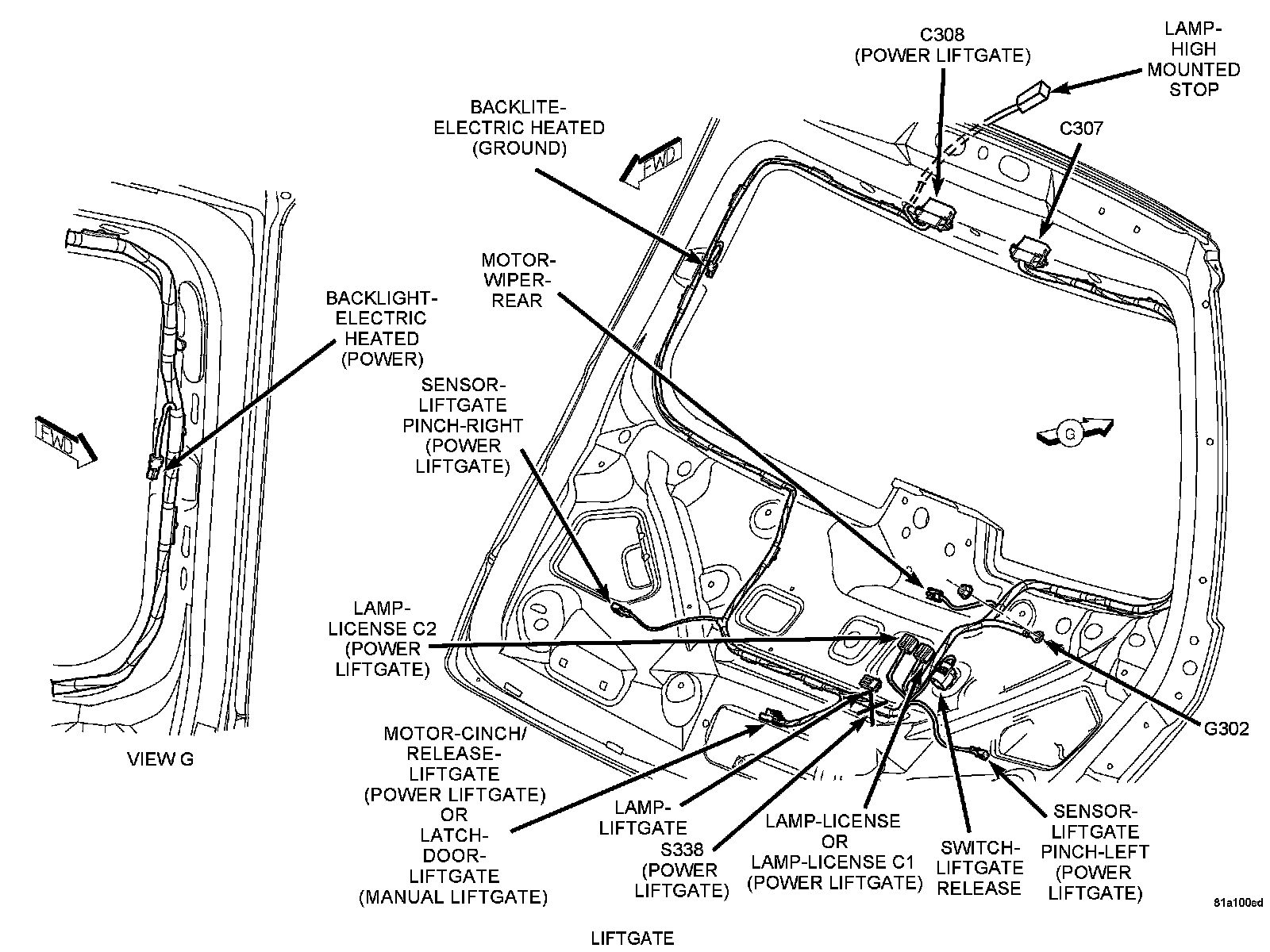

Component Location - 44
