Latch-Door-Driver

Component ID: 163

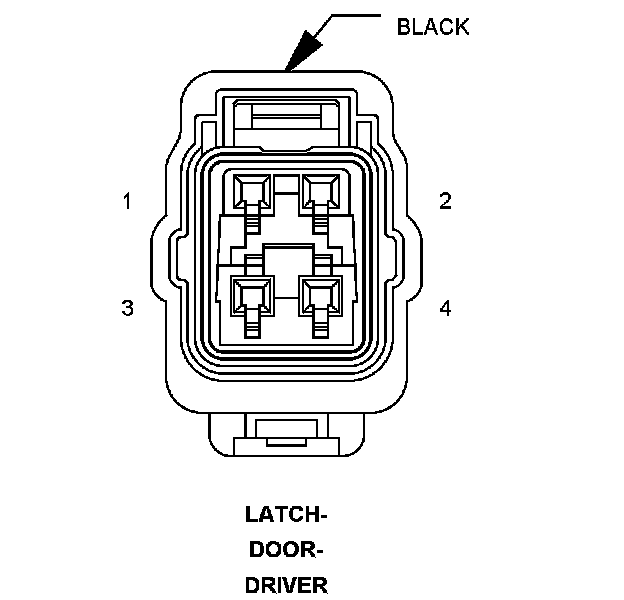

Component : LATCH-DOOR-DRIVER

Connector:
Name : LATCH-DOOR-DRIVER
Color : BLACK
# of pins : 4




Pin Circuit Description
1 G75 20VT DRIVER DOOR AJAR SWITCH SENSE
2 Z75 20BK/VT GROUND
3 P1 20TN/LG DRIVER DOOR UNLOCK DRIVER
4 P3 20TN/WT DRIVER DOOR LOCK DRIVER

Component Location - 40
