Main Relay (Computer/Fuel System)

Component ID: 222

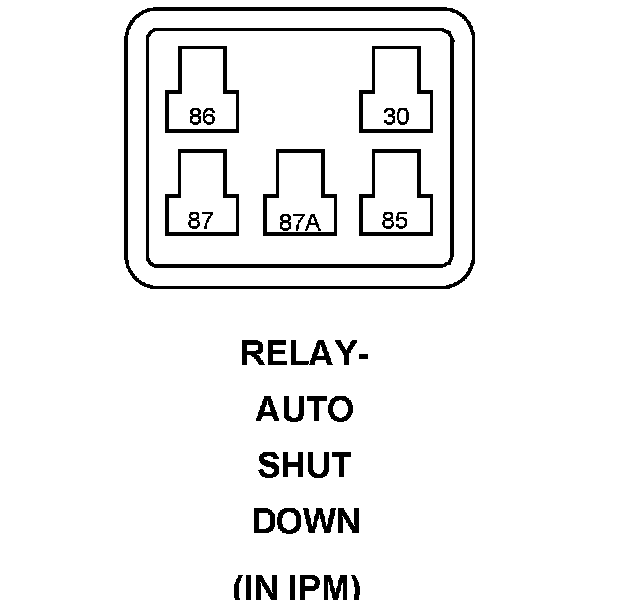

Component : RELAY-AUTO SHUT DOWN

Connector:
Name : RELAY-AUTO SHUT DOWN
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 K51 18BR/GY ASD RELAY CONTROL
87 F343 16PK/BR ASD RELAY OUTPUT
87A - -
