License Plate Lamp

Component ID: 150
Component : LAMP-LICENSE

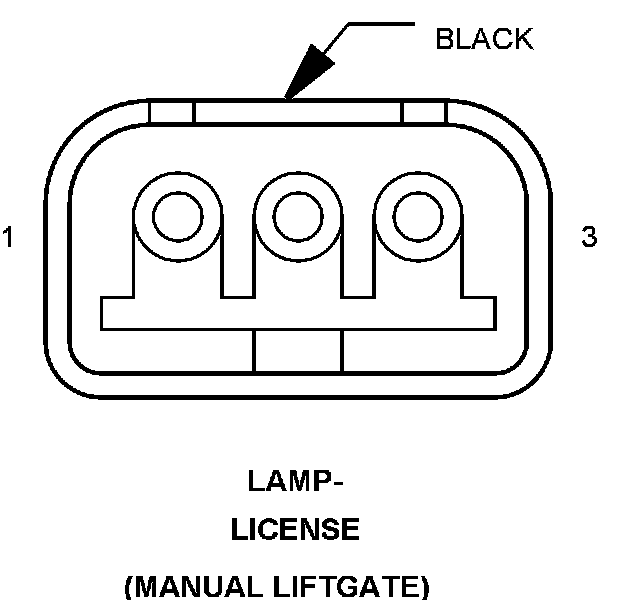

Connector:
Name : LAMP-LICENSE
Color : BLACK
# of pins : 3
Qualifier : (MANUAL LIFTGATE)




Pin Circuit Description
1 L3 18WT/VT LICENSE LAMP DRIVER
2 Z367 20BK/BR GROUND
3 - -

Component Location - 44




Component Location - 45

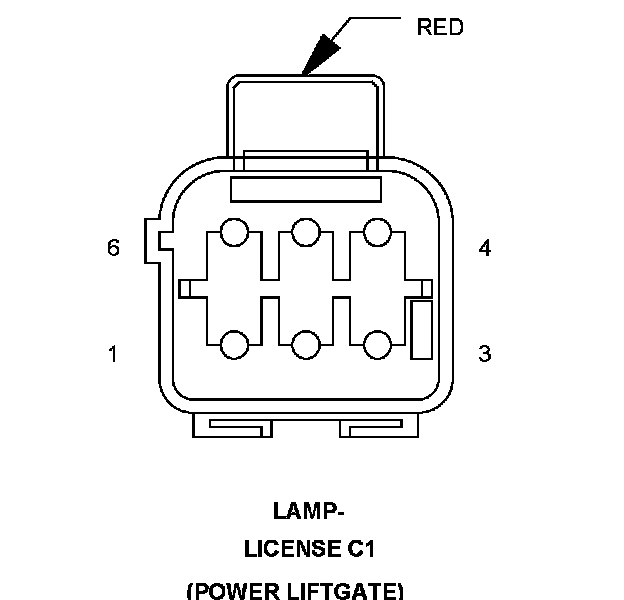

Connector:
Name : LAMP-LICENSE C1
Color : RED
# of pins : 6
Qualifier : (POWER LIFTGATE)




Pin Circuit Description
1 L3 18WT/VT LICENSE LAMP DRIVER
2 Z367 20BK/BR GROUND
3 Q94 22TN/LG LIFTGATE CHIME DRIVER
4 Z294 20BK/DG GROUND
5 G32 22VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
6 Q901 20OR/VT LOGIC GROUND

Component Location - 44




Component Location - 45

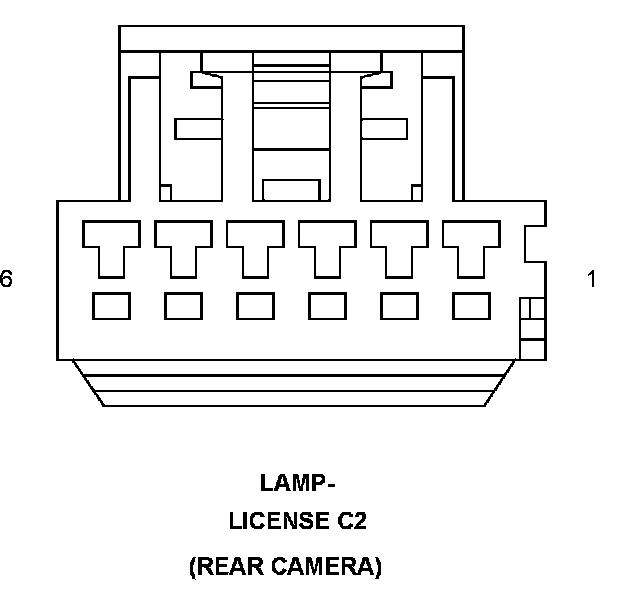

Connector:
Name : LAMP-LICENSE C2
Color :
# of pins : 6
Qualifier : (REAR CAMERA)




Pin Circuit Description
1 - -
2 X971 22GY/LB CAMERA RETURN
3 X970 22GY/OR CAMERA SIGNAL
4 X972 22 CAMERA SHIELD
5 Z927 20BK/LG GROUND
6 L1 20WT/LG BACKUP LAMP DRIVER

Component Location - 44




Component Location - 45
