Knock Sensor

Component ID: 351

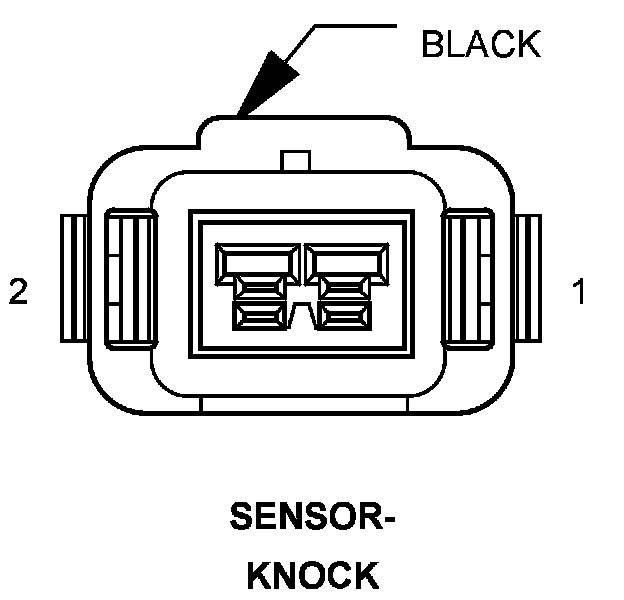

Component : SENSOR-KNOCK

Connector:
Name : SENSOR-KNOCK
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K42 20DB/OR KS SIGNAL
2 K942 20BR/LG KS RETURN

Component Location - 1




Component Location - 10
