Keyless Entry Module

Component ID: 191
Component : MODULE-SENTRY KEY REMOTE ENTRY/WCM

Connector:

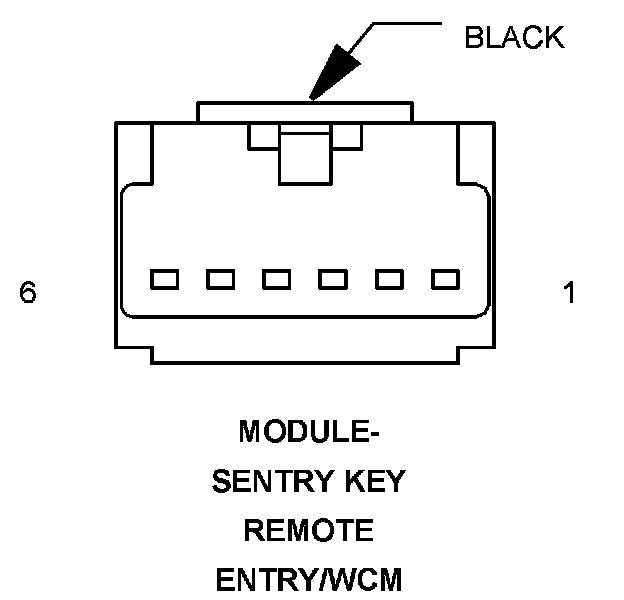

Name : MODULE-SENTRY KEY REMOTE ENTRY/WCM
Color : BLACK
# of pins : 6




Pin Circuit Description
1 - -
2 D25 20WT/VT PCI BUS
3 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
4 F20 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 Z120 20BK/WT GROUND
6 A118 20RD/OR FUSED B(+)

Component Location - 14




Component Location - 15




Component Location - 19
