Coil-Ignition 6
Component ID: 68

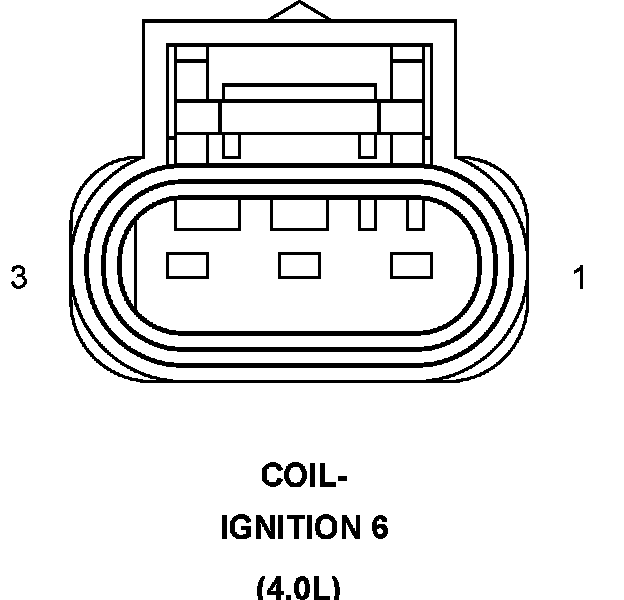

Component : COIL-IGNITION 6
Connector:
Name : COIL-IGNITION 6
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Circuit Description
1 - -
2 K10 16DB/OR COIL 6 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT
Component ID: 68
Component : COIL-IGNITION 6
Connector:
Name : COIL-IGNITION 6
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Circuit Description
1 - -
2 K10 16DB/OR COIL 6 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT
