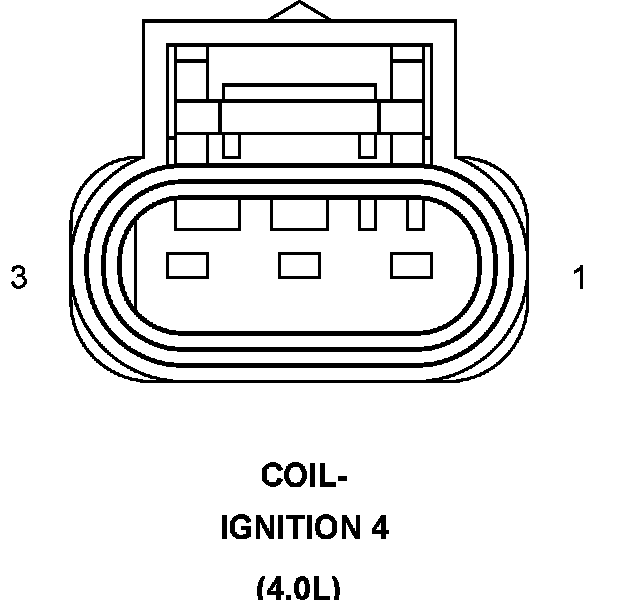

Coil-Ignition 4
Component ID: 66
Component : COIL-IGNITION 4
Connector:
Name : COIL-IGNITION 4
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Circuit Description
1 - -
2 K15 16DB/GY COIL 4 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT
Component ID: 66
Component : COIL-IGNITION 4
Connector:
Name : COIL-IGNITION 4
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Circuit Description
1 - -
2 K15 16DB/GY COIL 4 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT
