Coil-Ignition 3

Component ID: 65

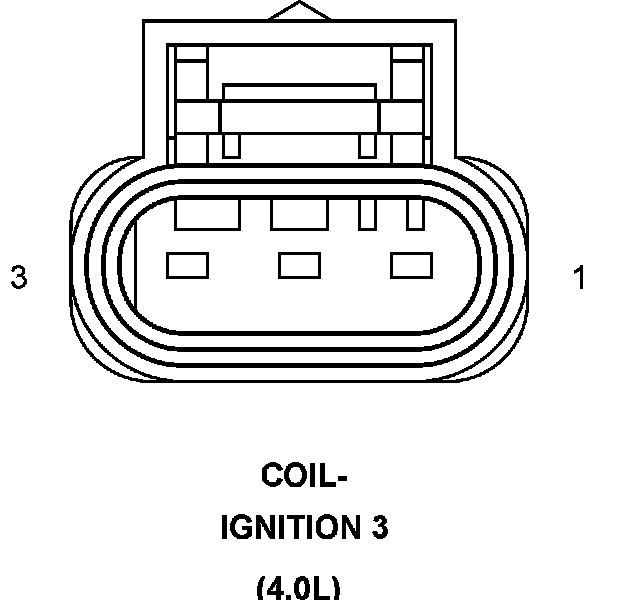

Component : COIL-IGNITION 3

Connector:
Name : COIL-IGNITION 3
Color :
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 - -
2 K16 16DB/OR COIL 3 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT

Component Location - 12
