Coil-Ignition 2
Component ID: 64

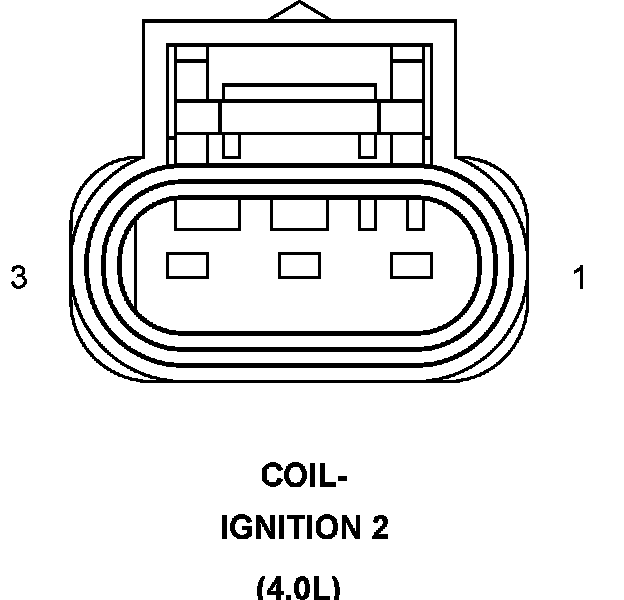

Component : COIL-IGNITION 2
Connector:
Name : COIL-IGNITION 2
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Circuit Description
1 - -
2 K17 16DB/TN COIL 2 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT
Component ID: 64
Component : COIL-IGNITION 2
Connector:
Name : COIL-IGNITION 2
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Circuit Description
1 - -
2 K17 16DB/TN COIL 2 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT
