Coil-Ignition 1

Component ID: 63

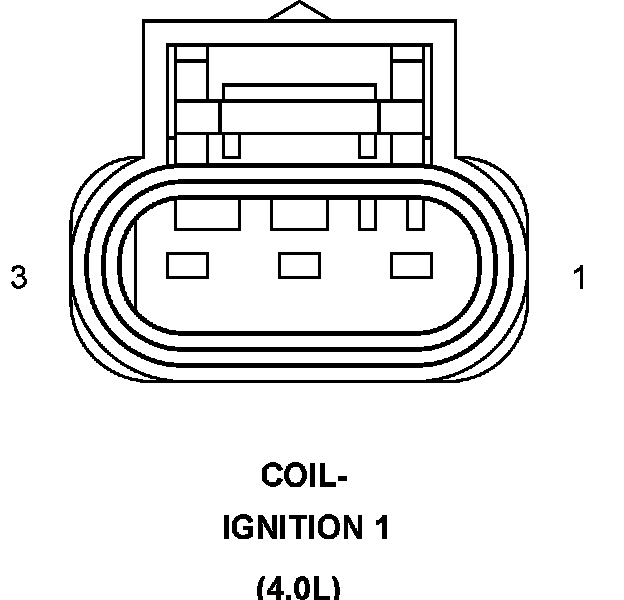

Component : COIL-IGNITION 1

Connector:
Name : COIL-IGNITION 1
Color :
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 - -
2 K19 16DB/DG COIL 1 CONTROL
3 F343 16PK/BR ASD RELAY OUTPUT

Component Location - 12
