Injector-Fuel 6

Component ID: 143

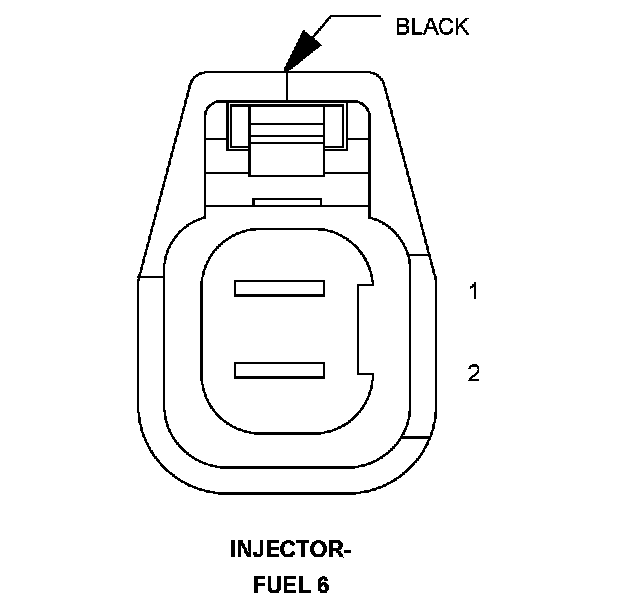

Component : INJECTOR-FUEL 6

Connector:
Name : INJECTOR-FUEL 6
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K344 16BR/GY ASD RELAY OUTPUT
Pin Circuit Description
1 F343 16PK/BR ASD RELAY OUTPUT
2 K58 16BR/VT INJECTOR 6 CONTROL
