Injector-Fuel 5

Component ID: 142

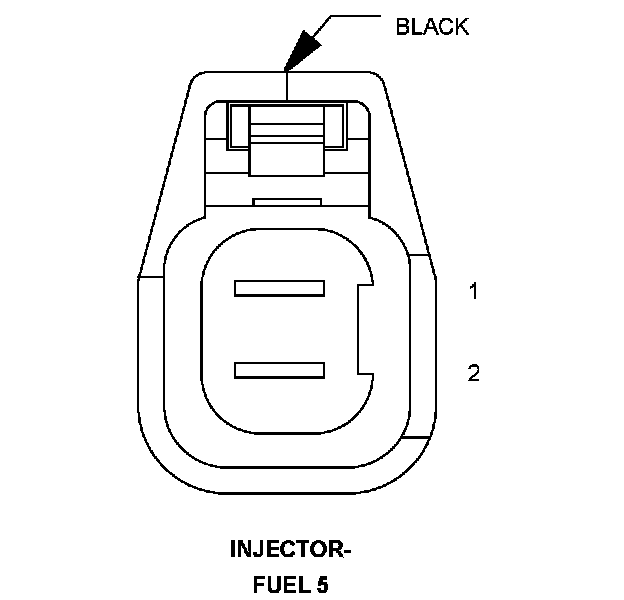

Component : INJECTOR-FUEL 5

Connector:
Name : INJECTOR-FUEL 5
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K344 16BR/GY ASD RELAY OUTPUT
Pin Circuit Description
1 F343 16PK/BR ASD RELAY OUTPUT
2 K38 16BR/OR INJECTOR 5 CONTROL

Component Location - 12
