Injector-Fuel 4

Component ID: 141

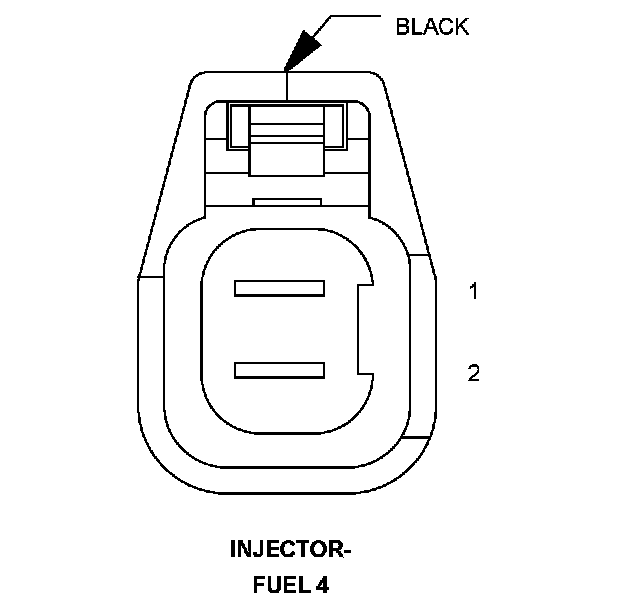

Component : INJECTOR-FUEL 4

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K344 16BR/GY ASD RELAY OUTPUT
Pin Circuit Description
1 F343 16PK/BR ASD RELAY OUTPUT
2 K14 16BR/TN INJECTOR 4 CONTROL
