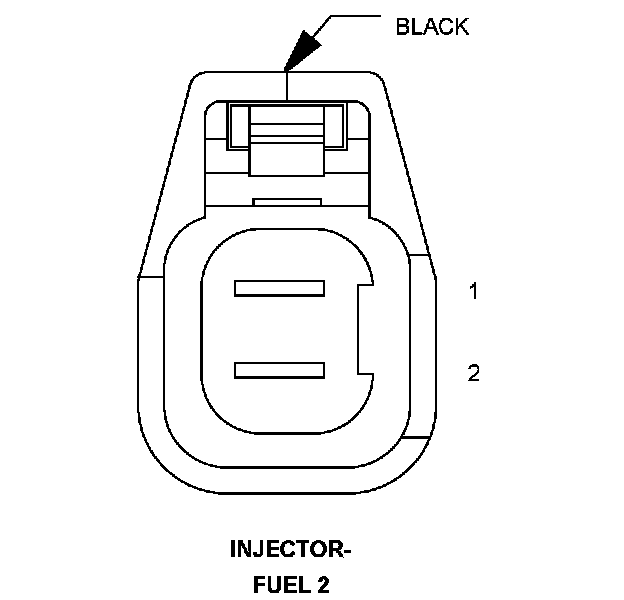

Injector-Fuel 2

Component ID: 139
Component : INJECTOR-FUEL 2

Connector:
Name : INJECTOR-FUEL 2
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K344 16BR/GY ASD RELAY OUTPUT
Pin Circuit Description
1 F343 16PK/BR ASD RELAY OUTPUT
2 K12 16BR/DB INJECTOR 2 CONTROL
