Injector-Fuel 1

Component ID: 138

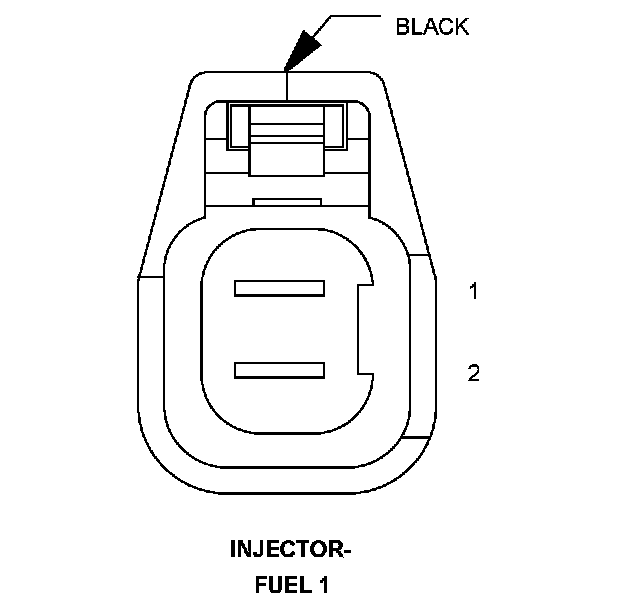

Component : INJECTOR-FUEL 1

Connector:
Name : INJECTOR-FUEL 1
Color : BLACK
# of pins : 2




Pin Circuit Description
1 K344 16BR/GY ASD RELAY OUTPUT
Pin Circuit Description
1 F343 16BR/WT ASD RELAY OUTPUT
2 K11 16BR/YL INJECTOR 1 CONTROL

Component Location - 12
