Engine Control Module
Component ID: 189
Component : MODULE-POWERTRAIN CONTROL
Connector:

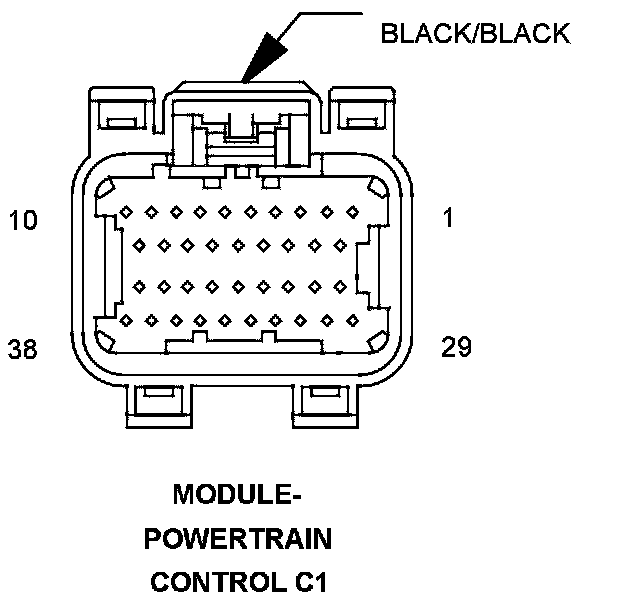

Name : MODULE-POWERTRAIN CONTROL C1
Color : BLACK/BLACK
# of pins : 38
Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 - -
9 Z130 16BK/BR GROUND
10 A109 18OR/RD FUSED B(+)
11 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 F1 20PK/WT IGNITION UNLOCK-RUN-START
13 - -
14 - -
15 - -
16 K236 18DB/LG SRV CONTROL
17 - -
18 Z131 16BK/DG GROUND
19 - -
20 G6 16VT/GY OIL PRESSURE SIGNAL
21 K235 20DB/YL SRV SIGNAL
22 T84 18DG/TN EMCC VFS CONTROL
23 K234 20DB/OR MTV SIGNAL
24 A804 18RD/GY FUSED B(+)
25 - -
26 - -
27 F856 20YL/PK 5 VOLT SUPPLY
28 - -
29 A109 18OR/RD FUSED B(+)
30 T751 20YL IGNITION SWITCH OUTPUT (START)
31 K141 18DB/YL O2 1/2 SIGNAL
32 K904 20DB/DG O2 RETURN (DOWN)
32 K904 18DB/DG O2 RETURN (DOWN)
33 K243 18BR O2 2/2 SIGNAL
34 D65 20WT/LG CAN C BUS (+)
35 D64 20WT/LB CAN C BUS (-)
36 - -
37 - -
38 F343 16PK/BR ASD RELAY OUTPUT

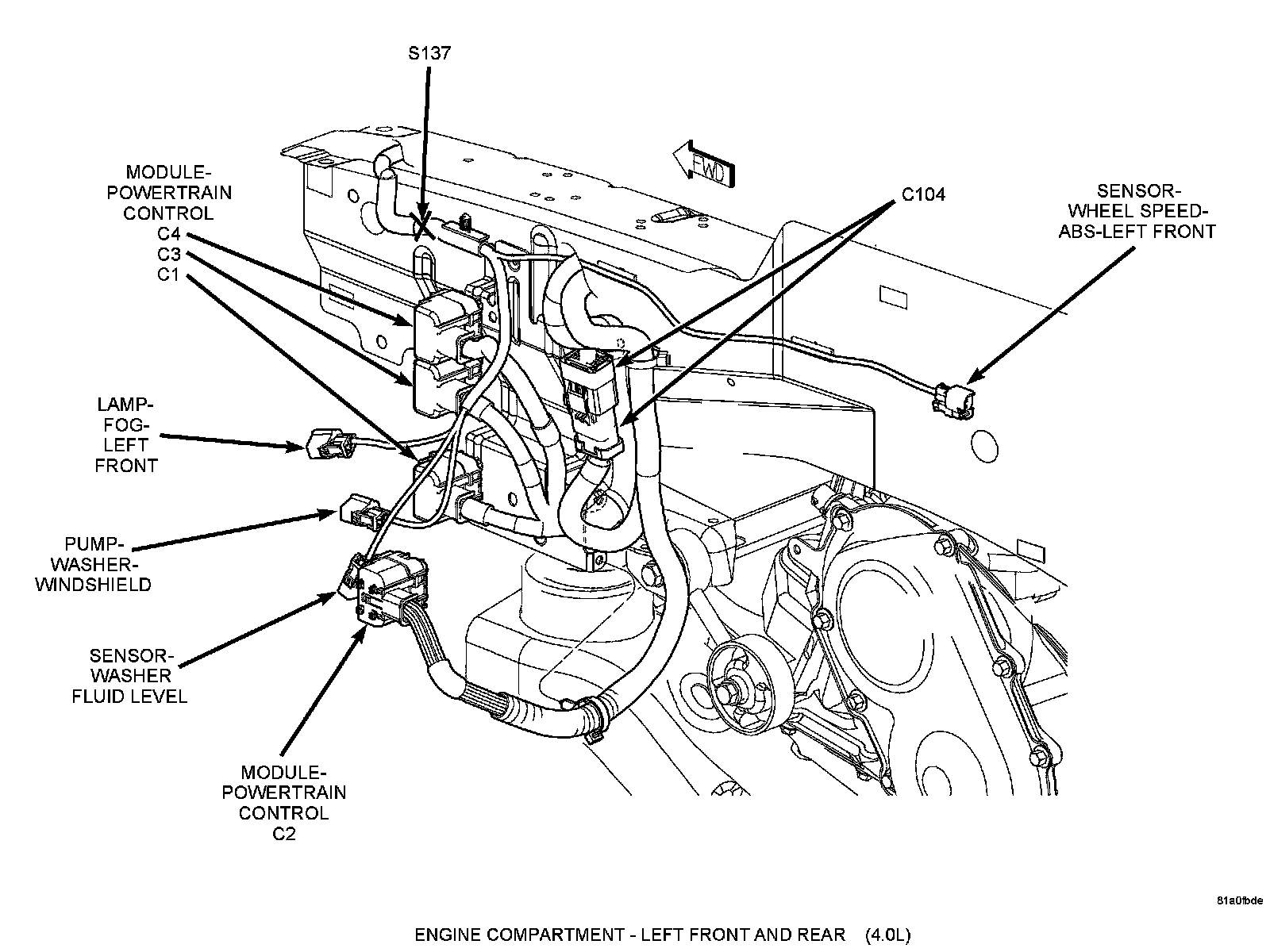

Component Location - 9 - 4.0L
4.0L:
Connector:

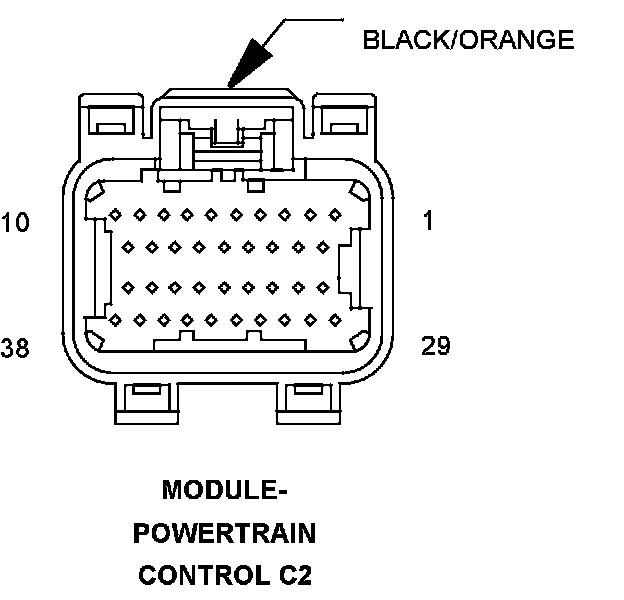

Name : MODULE-POWERTRAIN CONTROL C2
Color : BLACK/ORANGE
# of pins : 38
Pin Circuit Description
1 K10 16DB/OR COIL 6 CONTROL
2 K16 16DB/YL COIL 5 CONTROL
3 K15 16DB/GY COIL 4 CONTROL
4 K58 16BR/VT INJECTOR 6 CONTROL
5 K38 16BR/OR INJECTOR 5 CONTROL
6 K124 18DB/GY ETC MOTOR (+)
7 K18 16DB/OR COIL 3 CONTROL
7 K18 16DB/OR COIL 3 CONTROL
8 K35 18DB/VT EGR CONTROL
9 K17 16DB/TN COIL 2 CONTROL
9 K17 16DB/TN COIL 2 CONTROL
10 K19 16DB/DG COIL 1 CONTROL
10 K19 16DB/DG COIL 1 CONTROL
11 K14 16BR/TN INJECTOR 4 CONTROL
12 K13 16BR/LB INJECTOR 3 CONTROL
13 K12 16BR/DB INJECTOR 2 CONTROL
14 K11 16BR/YL INJECTOR 1 CONTROL
15 K922 20BR/DB TP SENSOR GROUND
15 K922 18BR/DB TP SENSOR GROUND
16 K136 18BR MTV CONTROL
17 K199 18BR/VT O2 2/1 HEATER CONTROL
18 K99 18BR/TN O2 1/1 HEATER CONTROL
19 K20 18BR/GY GEN FIELD CONTROL
20 K2 18VT/OR ECT SIGNAL
21 K22 18BR/OR TP SIGNAL 1
22 K34 20DB/LG EGR SIGNAL
23 K1 20VT/BR MAP SIGNAL
24 K942 20BR/LG KS RETURN
25 K42 20DB/OR KS SIGNAL
26 - -
27 K900 20DB/DG SENSOR GROUND
28 K122 20BR/DG TP SIGNAL 2
28 K122 18BR/DG TP SIGNAL 2
29 F855 20PK/YL 5 VOLT SUPPLY
30 K21 20BR/WT IAT SIGNAL
31 K41 18DB/LB O2 1/1 SIGNAL
32 K902 18BR/DG O2 RETURN (UP)
33 K43 18DB/LG O2 2/1 SIGNAL
34 K44 20DB/GY CMP SIGNAL
35 K24 20BR/LB CKP SIGNAL
36 - -
37 - -
38 K126 20DB/LG ETC MOTOR (-)
38 K126 18DB/LG ETC MOTOR (-)
Component Location - 9 - 4.0L
4.0L:
Connector:

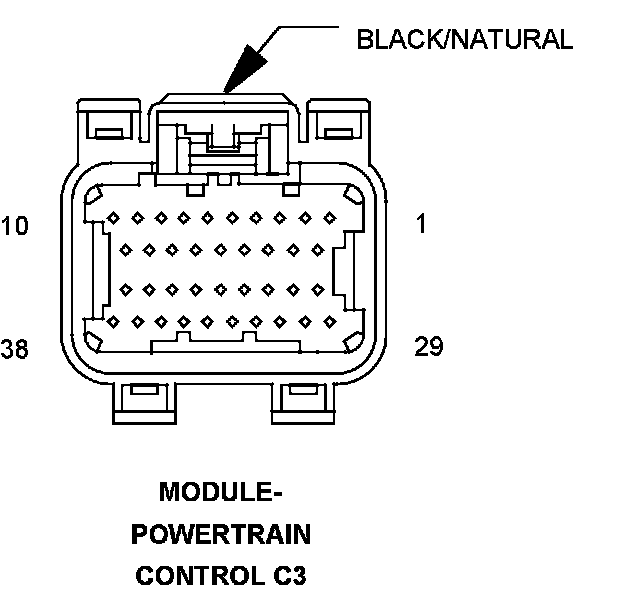

Name : MODULE-POWERTRAIN CONTROL C3
Color : BLACK/NATURAL
# of pins : 38
Pin Circuit Description
1 - -
2 - -
3 K51 18BR/GY ASD RELAY CONTROL
4 - -
5 - -
6 K173 20BR/VT RAD FAN RELAY CONTROL
6 K173 18BR/VT RAD FAN RELAY CONTROL
7 - -
8 - -
9 K299 18BR/OR O2 1/2 HEATER CONTROL
10 K399 18BR/GY O2 2/2 HEATER CONTROL
11 C13 20LB/OR A/C CLUTCH RELAY CONTROL
12 - -
13 - -
14 B16 20LB/DG BRAKE SIGNAL 2
15 K975 18BR/OR S/C SWITCH GROUND
16 K167 20BR/YL APP SENSOR GROUND 1
17 K400 20BR/VT APP SENSOR GROUND 2
18 V38 20VT/OR S/C SIGNAL 2
19 F343 16PK/BR ASD RELAY OUTPUT
20 K52 20DB/WT EVAP PURGE CONTROL
21 - -
22 - -
23 B29 20DG/WT BRAKE SIGNAL 1
24 - -
25 K23 20BR/WT APP SIGNAL 1
26 T44 20YL/DG AUTOSTICK DOWNSHIFT SIGNAL
27 T5 20DG/YL AUTOSTICK UPSHIFT SIGNAL
28 F343 16PK/BR ASD RELAY OUTPUT
29 K70 20DB/BR EVAP PURGE RETURN
30 - -
31 - -
32 - -
33 - -
34 V37 20VT S/C SIGNAL 1
35 K107 20VT/WT ESM SIGNAL
36 K29 20WT/BR APP SIGNAL 2
37 K31 20BR FUEL PUMP RELAY CONTROL
38 T752 20DG/OR STARTER RELAY CONTROL
Component Location - 9 - 4.0L
4.0L:
Connector:

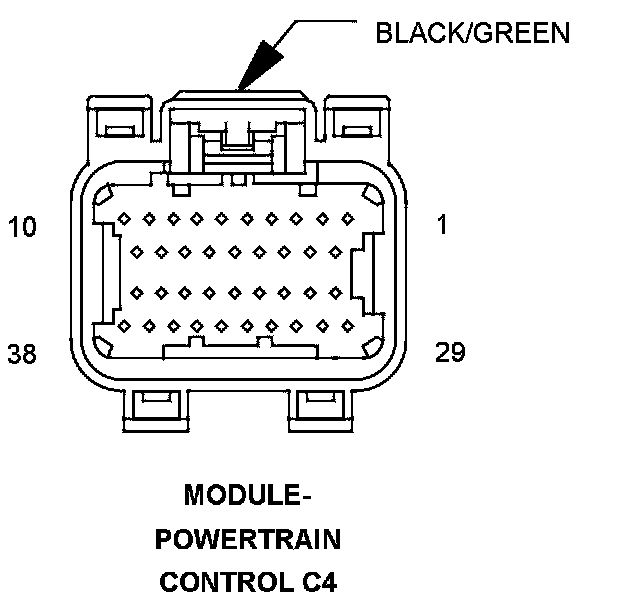

Name : MODULE-POWERTRAIN CONTROL C4
Color : BLACK/GREEN
# of pins : 38
Pin Circuit Description
1 T60 18YL/GY OD CONTROL
2 T59 18YL/LB UD CONTROL
3 T84 18DG/TN EMCC VFS CONTROL
4 T82 18DG/OR DC CONTROL
5 T83 18DG/GY DC PRESSURE SIGNAL
6 T19 18DB/YL 2/4 CONTROL
6 T19 18DB/YL 2/4-L/R CONTROL
7 - -
8 T80 18DG/YL LC CONTROL
9 - -
10 T20 18WT/DG L/R CONTROL
11 T118 18DG LP VFS CONTROL
12 Z133 16BK/LG GROUND
13 Z133 16BK/LG GROUND
14 Z133 16BK/LG GROUND
15 T1 18LB/DG TRS T1 SIGNAL
16 T3 18DG/DB TRS T3 SIGNAL
17 - -
18 T15 18YL/BR TRANSMISSION CONTROL
19 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
20 - -
21 T81 18DG/LB LC PRESSURE SIGNAL
22 T9 18DG/TN OD PRESSURE SIGNAL
23 - -
24 T85 18DG/LG TRANSFER SPEED SIGNAL
25 - -
26 - -
27 T41 18YL/DB TRS T41 SIGNAL
28 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
29 T50 18YL/TN L/R PRESSURE SIGNAL
30 T47 18YL/DG 2/4 PRESSURE SIGNAL
31 T38 18YL/BR LINE PRESSURE SIGNAL
32 T14 18DG/BR OUTPUT SPEED SIGNAL
33 T52 18DG/WT INPUT SPEED SIGNAL
34 T13 18DG/VT SENSOR GROUND
35 T54 18DG/OR TRANSMISSION TEMPERATURE SIGNAL
36 - -
37 T42 18DG/YL TRS T42 SIGNAL
38 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
Component Location - 9 - 4.0L
4.0L:
