EGR Valve

Component ID: 14

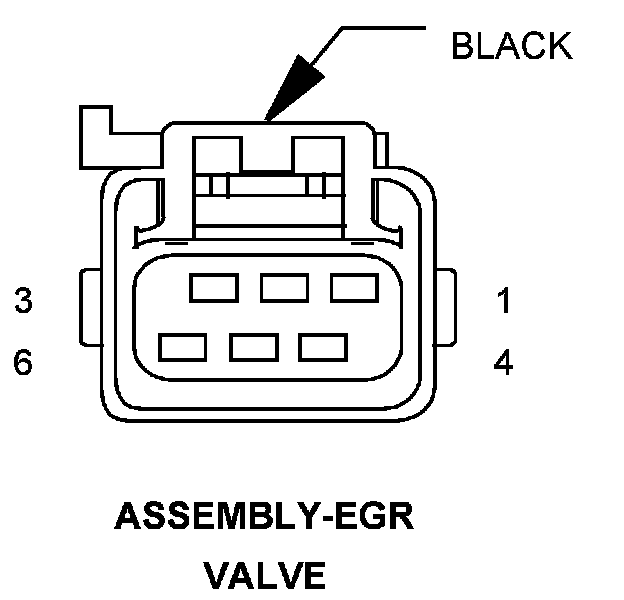

Component : ASSEMBLY-EGR VALVE

Connector:
Name : ASSEMBLY-EGR VALVE
Color : BLACK
# of pins : 6




Pin Circuit Description
1 K34 20DB/LG EGR SIGNAL
2 F856 20PK/YL 5 VOLT SUPPLY
3 K900 20DB/DG SENSOR GROUND
4 Z335 18BK/WT GROUND
5 - -
6 K35 18DB/VT EGR CONTROL

Component Location - 10
