Driver/Vehicle Information Display

Component ID: 179
Component : MODULE-ELECTRONIC OVERHEAD

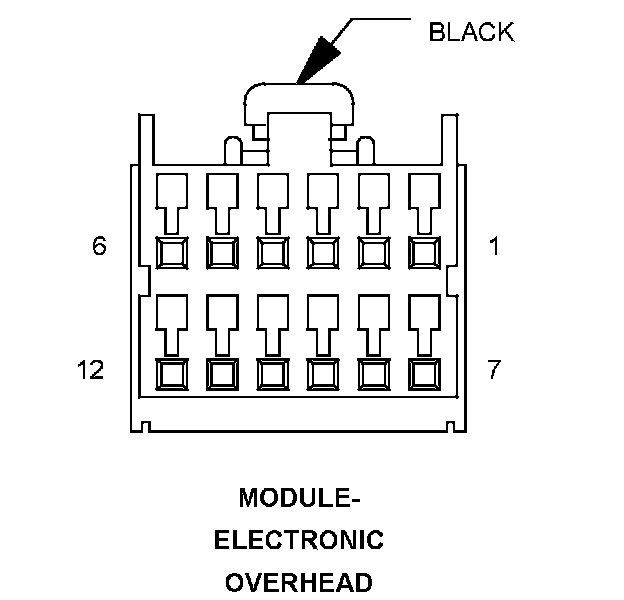

Connector:
Name : MODULE-ELECTRONIC OVERHEAD
Color : BLACK
# of pins : 12




Pin Circuit Description
1 Q4 20OR/WT SUNROOF VENT
2 G25 22VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 18BK/DB GROUND
5 A114 20GY/RD FUSED B(+)
6 F316 20BK/PK FUSED ACCESSORY RELAY OUTPUT
7 - -
8 - -
9 Q3 22OR/TN SUNROOF OPEN
10 Q5 22OR/LB SUNROOF CLOSE
11 L24 20BK/GY AUTOMATIC HEADLAMP SIGNAL
12 L11 20BK/WT BACKUP LAMP SIGNAL

Component Location - 43
