Coolant Temperature Sensor/Switch (For Computer)

Component ID: 345
Component : SENSOR-ENGINE COOLANT TEMPERATURE

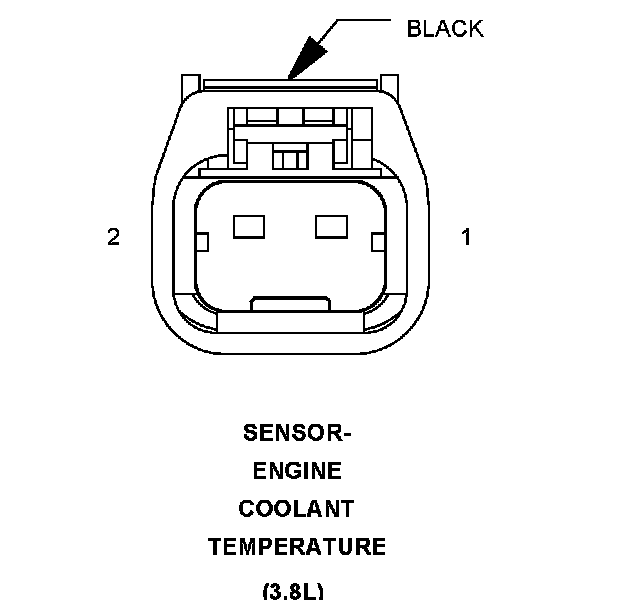

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (3.8L)




Pin Circuit Description
1 K900 20DB/DG SENSOR GROUND
2 K2 18VT/OR ECT SIGNAL

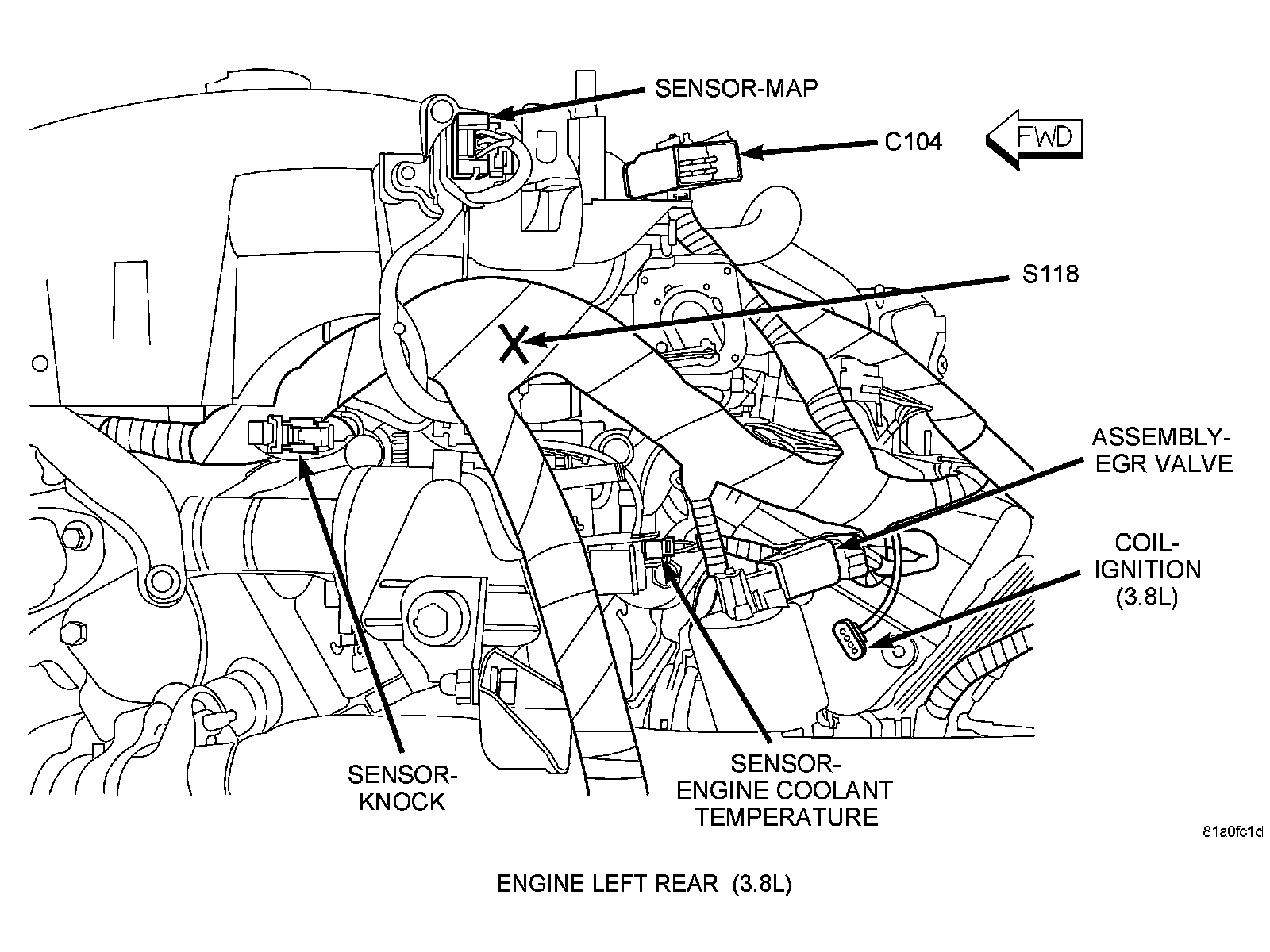

Component Location - 10

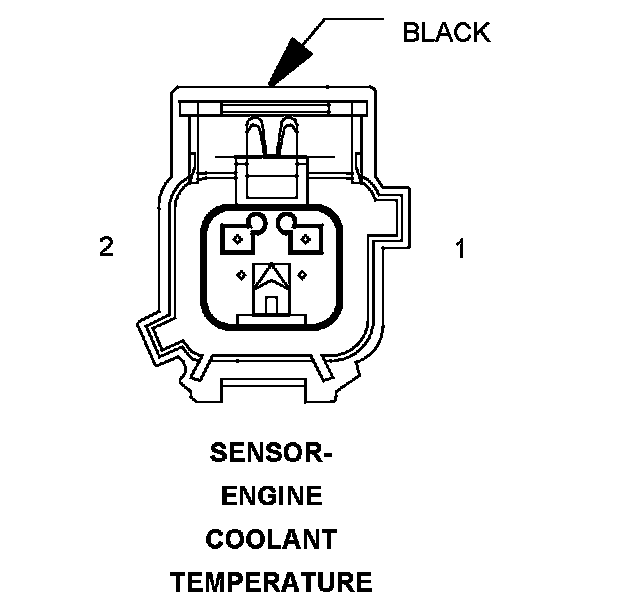

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (4.0L)




Pin Circuit Description
1 K900 20DB/DG SENSOR GROUND
2 K2 18VT/OR ECT SIGNAL

Component Location - 10
