Module-Booster Fan Power-Rear

Component ID: 175
Component : MODULE-BOOSTER FAN POWER-REAR

Connector:

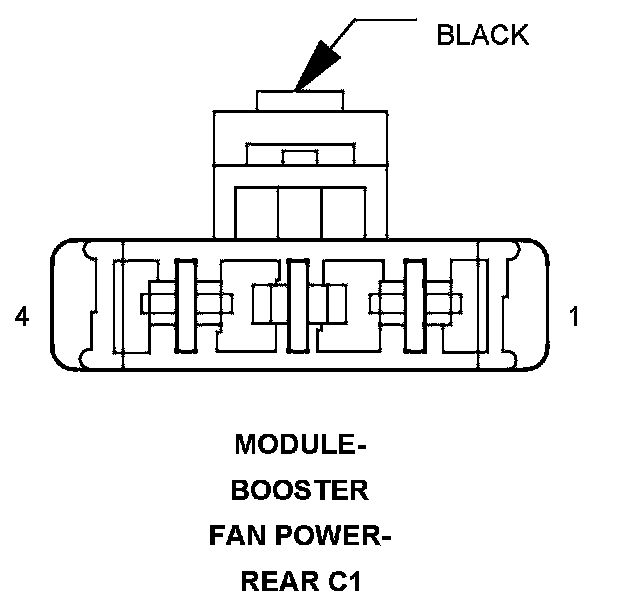

Name : MODULE-BOOSTER FAN POWER-REAR C1
Color : BLACK
# of pins : 4




Pin Circuit Description
1 - -
2 Z135 18BK/LB GROUND
3 C57 20DB/LB REAR BOOSTER FAN CONTROL
4 C51 18LB/BR FUSED REAR BOOSTER FAN RELAY OUTPUT

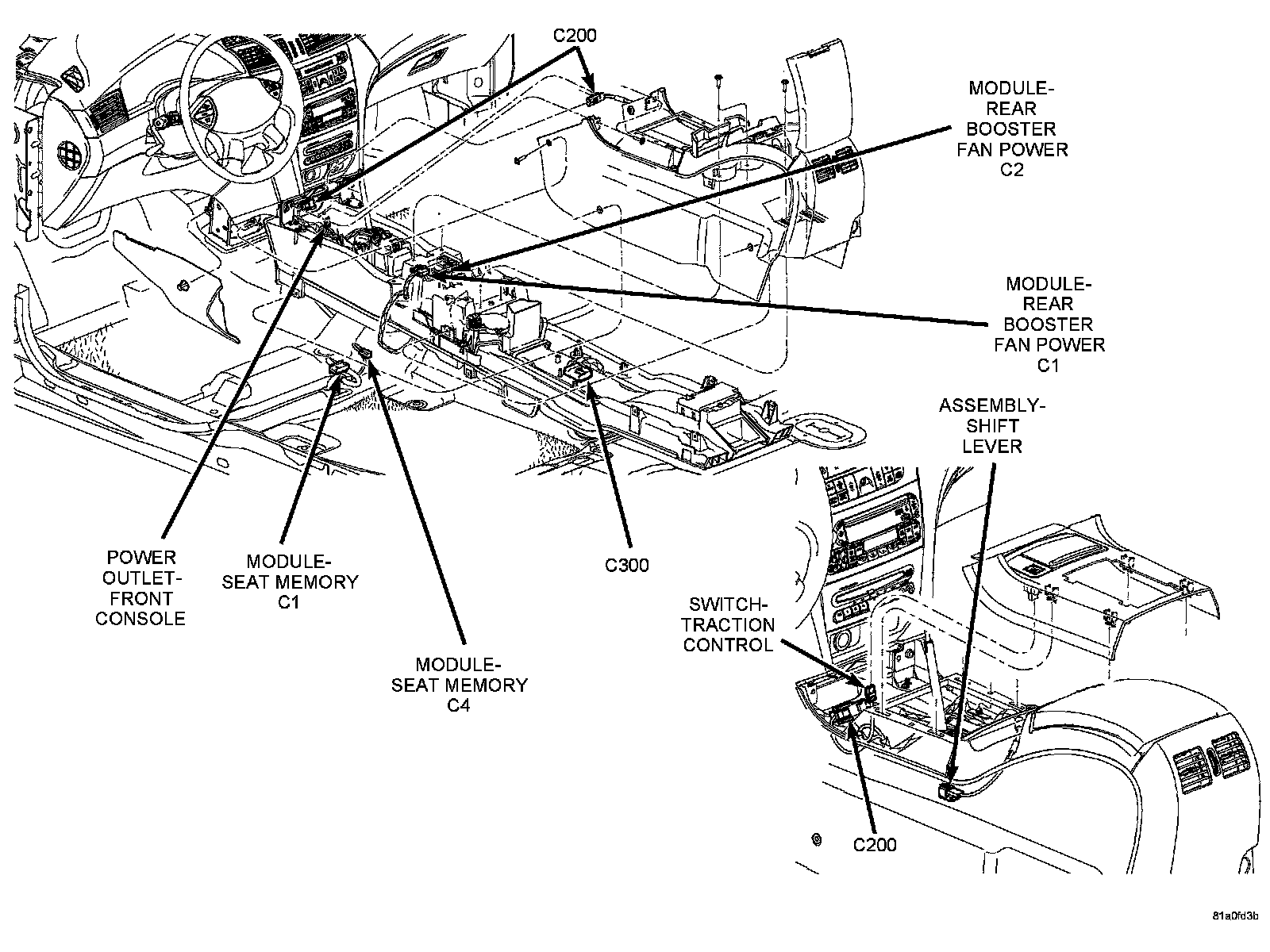

Component Location - 23

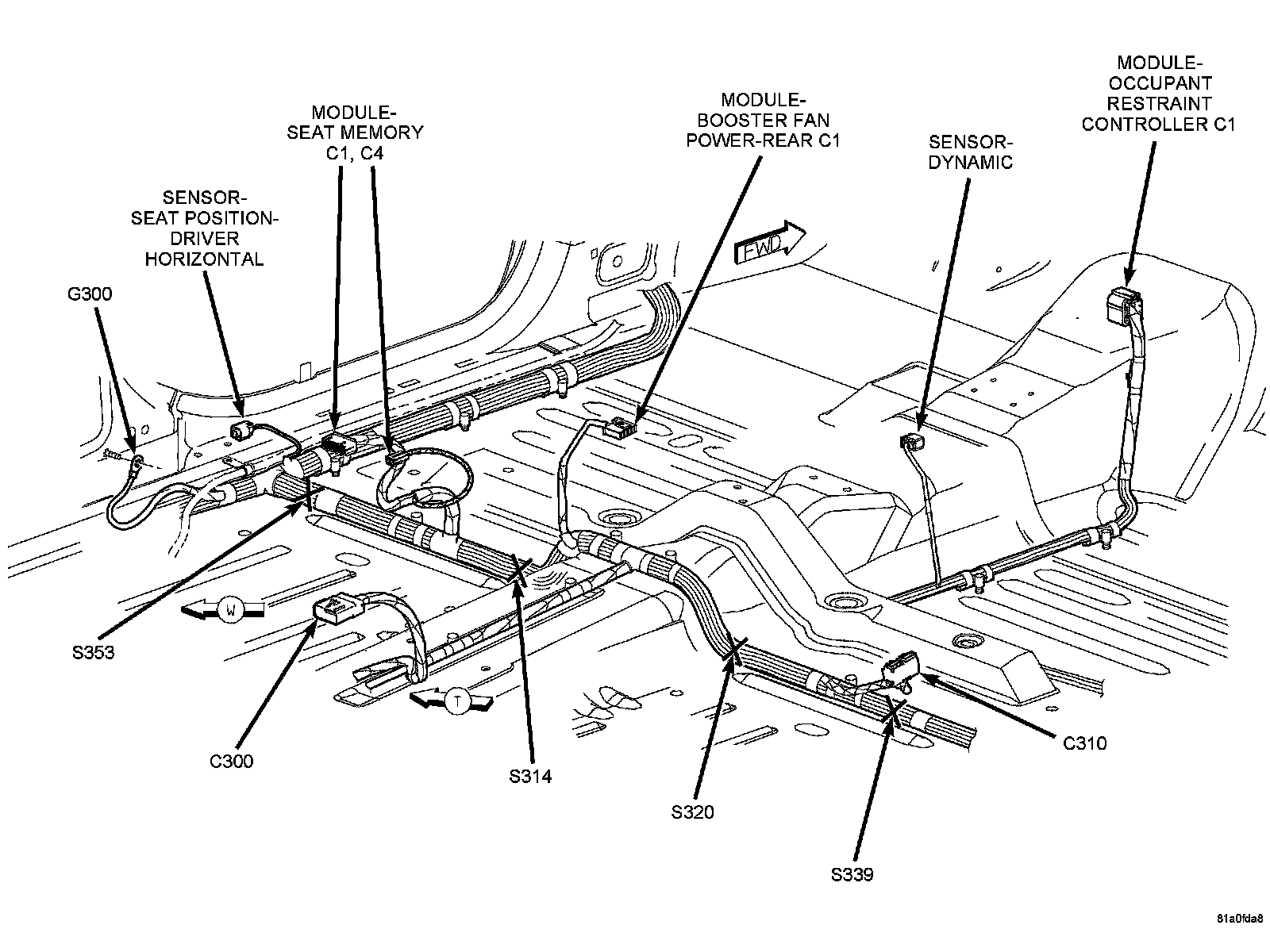

Component Location - 26






Connector:

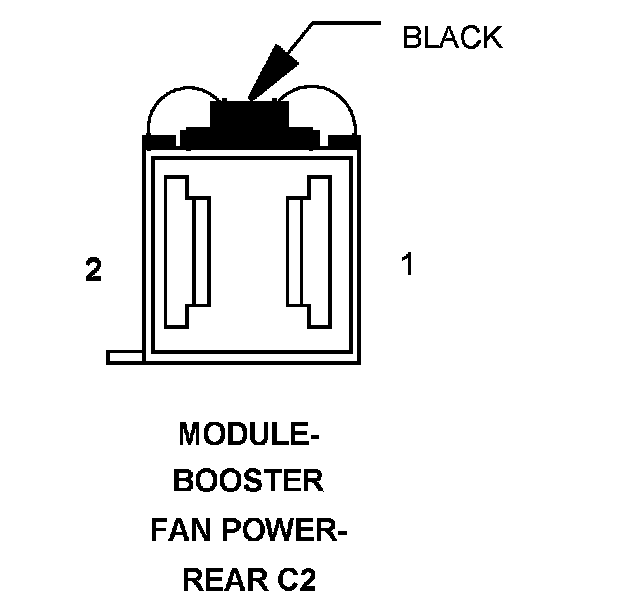

Name : MODULE-BOOSTER FAN POWER-REAR C2
Color : BLACK
# of pins : 2




Pin Circuit Description
1 LG BOOSTER FAN SUPPLY
2 BK BOOSTER FAN GROUND

Component Location - 23




Component Location - 26
