Compressor Clutch

Component ID: 61
Component : CLUTCH-A/C COMPRESSOR

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : LT. GRAY
# of pins : 2
Qualifier : (3.8L)




Pin Circuit Description
1 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND

Component Location - 11




Component Location - 13

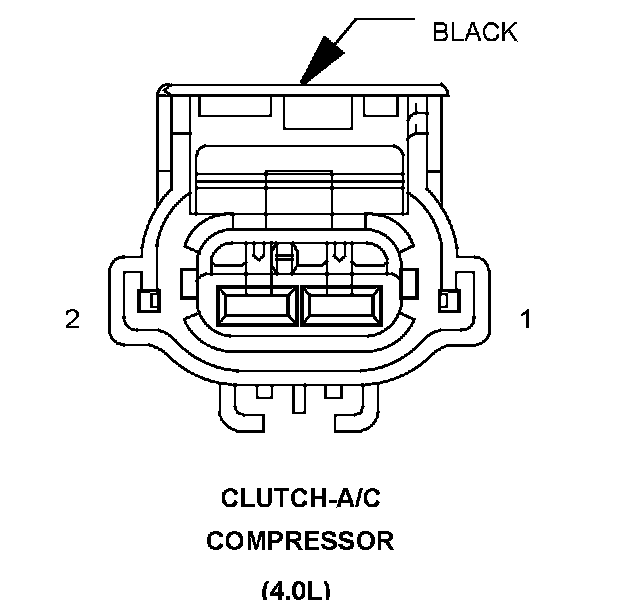

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : BLACK
# of pins : 2
Qualifier : (4.0L)




Pin Circuit Description
1 C3 18DB/YL A/C COMPRESSOR CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND

Component Location - 11




Component Location - 13
