Compact Disc Player (CD)

Component ID: 57
Component : CHANGER-DVD/CD

Connector:

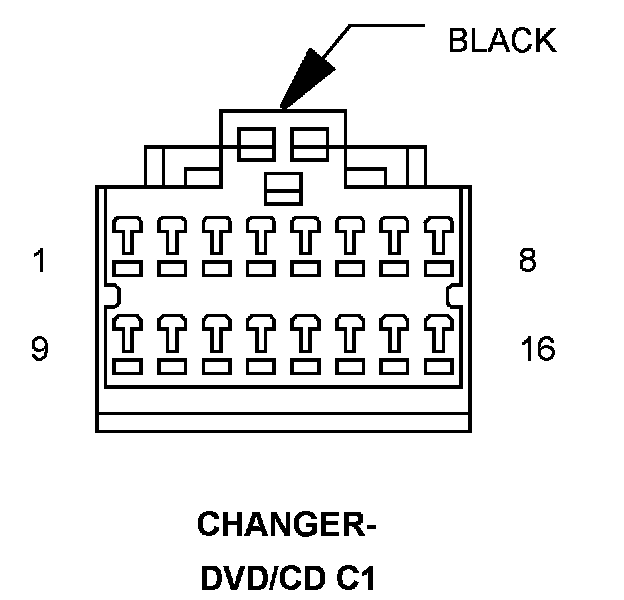

Name : CHANGER-DVD/CD C1
Color : BLACK
# of pins : 16




Pin Circuit Description
1 A118 20RD/OR FUSED B(+)
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 X40 22GY/WT AUDIO OUT RIGHT
9 Z530 20GY/BK GROUND
10 - -
11 X112 20DG/GY IGNITION RUN/ACC SIGNAL
12 D25 20WT/VT PCI BUS
13 - -
14 - -
15 X140 22GY/OR COMMON AUDIO
16 X41 22DG/WT AUDIO OUT LEFT

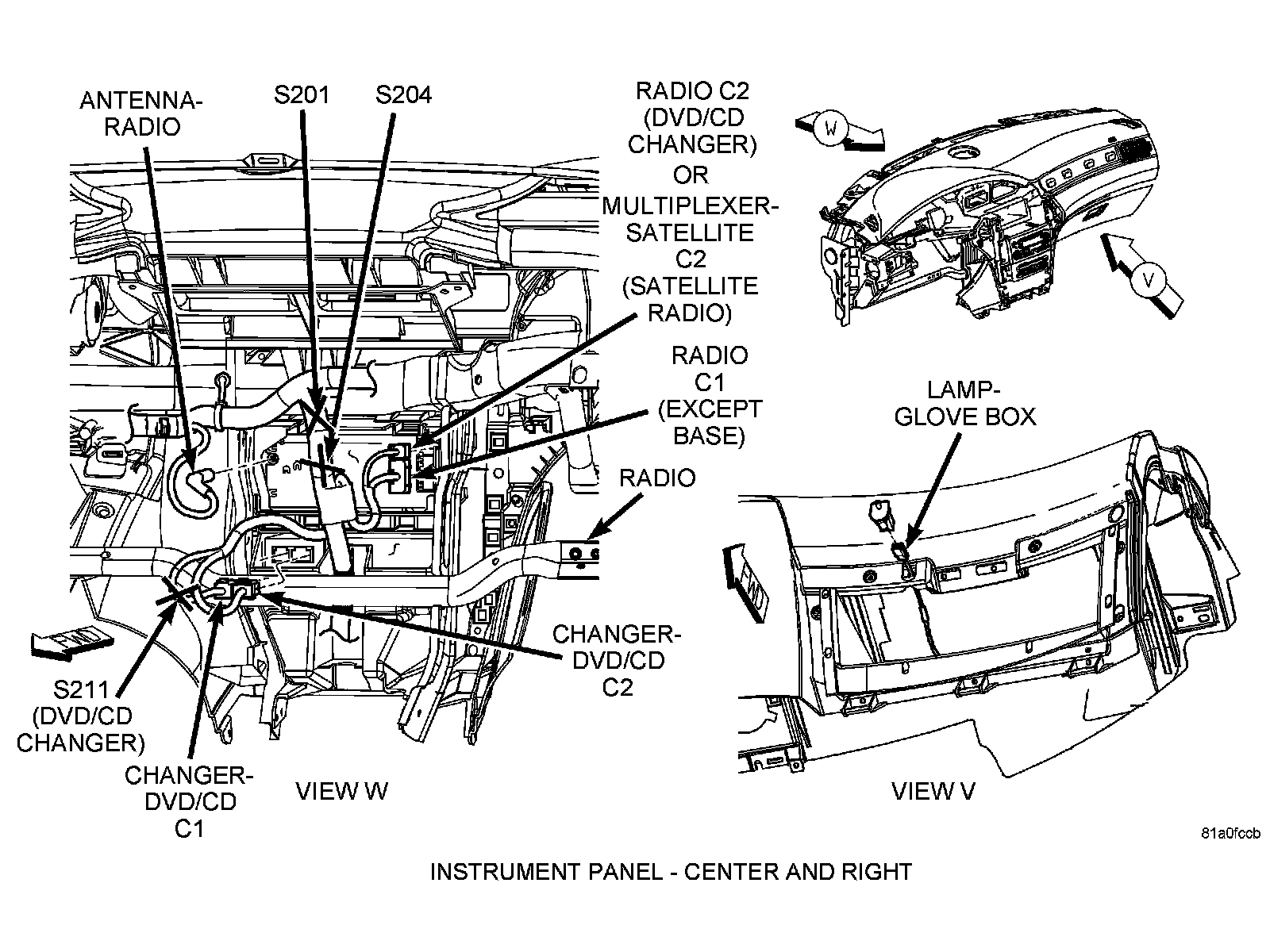

Component Location - 16






Connector:

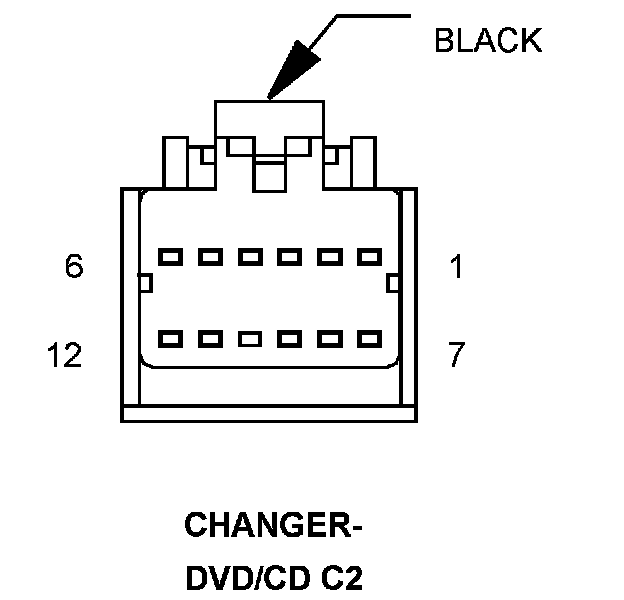

Name : CHANGER-DVD/CD C2
Color : BLACK
# of pins : 12




Pin Circuit Description
1 X515 22GY/OR VIDEO SIGNAL
2 X915 22GY/LB VIDEO CONTROL
3 X961 22GY/WT HEADPHONE AUDIO SIGNAL LEFT
3 X961 22GY/OR HEADPHONE AUDIO SIGNAL LEFT
4 X963 22WT HEADPHONE I/R XMTR ENABLE
5 X211 20YL/GY FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
6 X114 20GY/TN FUSED B(+)
7 X955 22 SHIELD
8 X962 22DG/WT HEADPHONE RETURN
9 X960 22GY/WT HEADPHONE AUDIO SIGNAL RIGHT
10 X555 22VT/OR VIDEO PLAY SIGNAL
11 - -
12 X530 20GY/DB VIDEO RETURN

Component Location - 16
