Sensor-Park Assist-No. 7

Component ID: 361

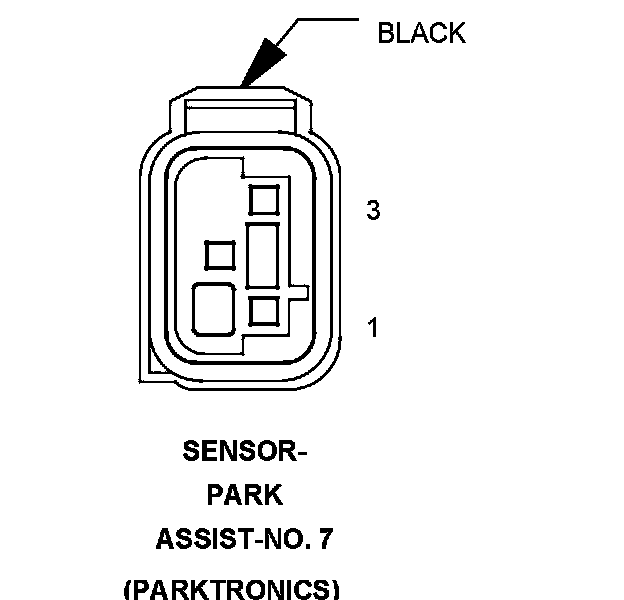

Component : SENSOR-PARK ASSIST-NO. 7

Connector:
Name : SENSOR-PARK ASSIST-NO. 7
Color : BLACK
# of pins : 3
Qualifier : (PARKTRONICS)




Pin Circuit Description
1 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
2 D700 20WT/GY PARK ASSIST SENSOR NO. 7 SIGNAL
3 X750 20GY/LB PARK ASSIST SENSOR GROUND
