C318

Component ID: 53
Component : C318

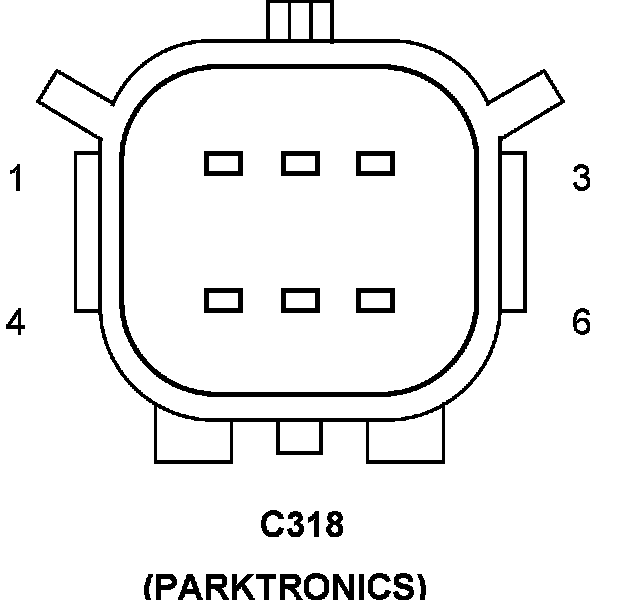

Connector:
Name : C318
Color :
# of pins : 6
Qualifier : (PARKTRONICS)
Gender : FEMALE

Pin Circuit Description
1 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
2 D700 20WT/GY PARK ASSIST SENSOR NO. 7 SIGNAL
3 D701 20WT/LB PARK ASSIST SENSOR NO. 8 SIGNAL
4 D703 20WT/OR PARK ASSIST SENSOR NO. 9 SIGNAL
5 D704 20WT/DB PARK ASSIST SENSOR NO. 10 SIGNAL
6 X750 20GY/LB PARK ASSIST SENSOR GROUND

Component Location - 28

Component Location - 36

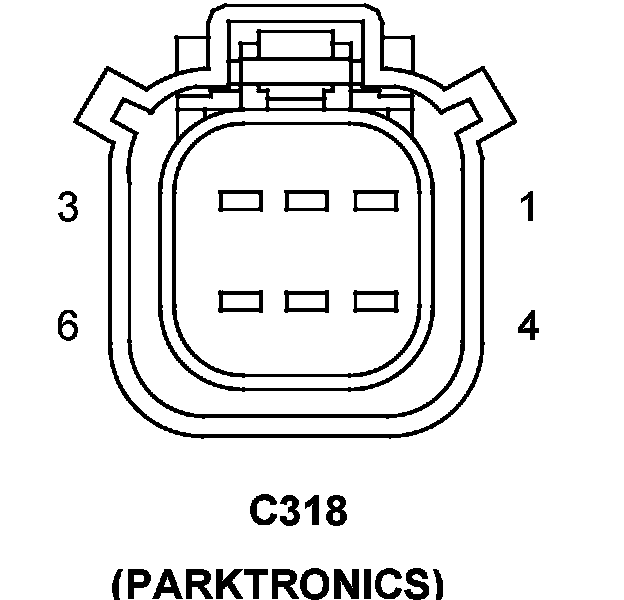

Connector:
Name : C318
Color :
# of pins : 6
Qualifier : (PARKTRONICS)
Gender : MALE

Component Location - 36
