C317

Component ID: 52
Component : C317

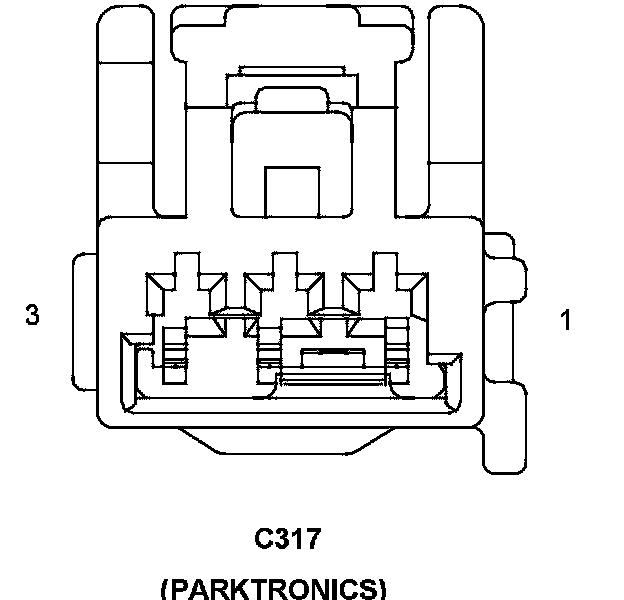

Connector:
Name : C317
Color :
# of pins : 3
Qualifier : (PARKTRONICS)
Gender : FEMALE




Pin Circuit Description
1 X777 20DG/GY PARK ASSIST DISPLAY SUPPLY
2 Z171 20GY/BK PARK ASSIST DISPLAY GROUND
3 D777 20WT/GY PARK ASSIST DISPLAY SIGNAL

Component Location - 29

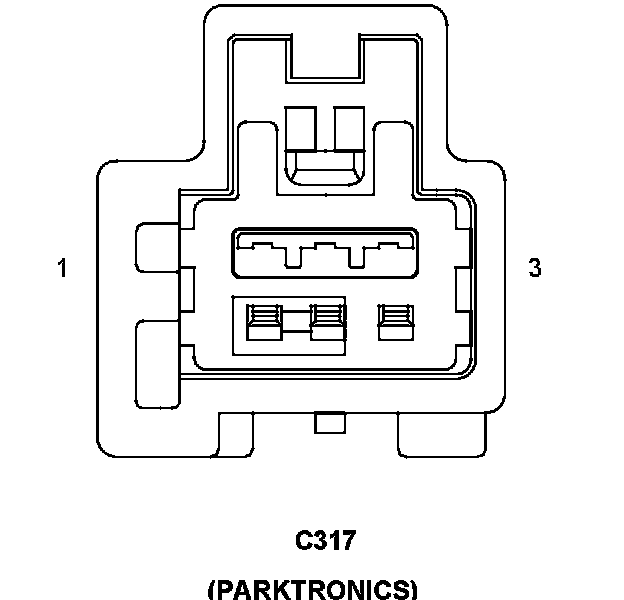

Connector:
Name : C317
Color :
# of pins : 3
Qualifier : (PARKTRONICS)
Gender : MALE




Pin Circuit Description
1 X777 20DG/GY PARK ASSIST DISPLAY SUPPLY
2 Z171 20GY/BK PARK ASSIST DISPLAY GROUND
3 D777 20WT/GY PARK ASSIST DISPLAY SIGNAL

Component Location - 29
