C315

Component ID: 50
Component : C315

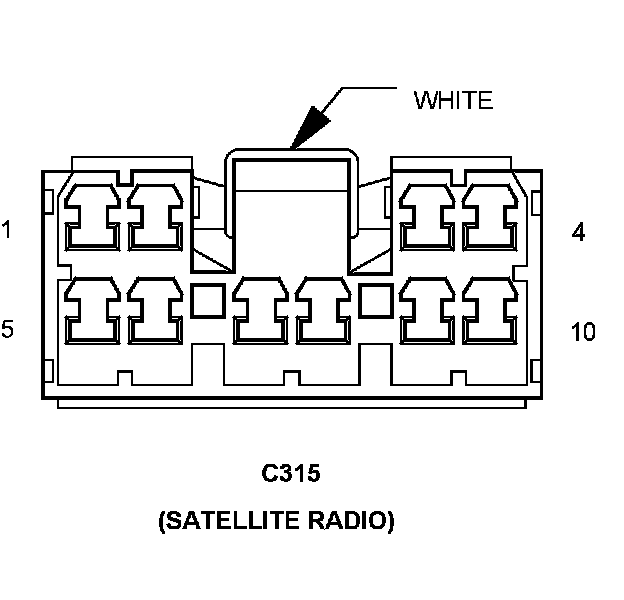

Connector:
Name : C315
Color : WHITE
# of pins : 10
Qualifier : (SATELLITE RADIO)
Gender : FEMALE

Pin Circuit Description
1 X17 22DG/OR AUDIO SIGNAL LEFT (+)
2 X16 22DG/YL AUDIO SIGNAL RIGHT (+)
3 X917 22DG AUDIO SIGNAL COMMON
4 D25 20WT/VT PCI BUS
5 X112 20DG/GY IGNITION RUN/ACC SIGNAL
6 X480 20DG/LB AUDIO MUX ENABLE
7 X607 20 SHIELD
8 X160 20GY/YL FUSED B(+)
9 Z141 20BK/TN GROUND
10 - -

Component Location - 15

Component Location - 18

Component Location - 30

Connector:
Name : C315
Color : WHITE
# of pins : 10
Qualifier : (SATELLITE RADIO)
Gender : MALE

Component Location - 18

Component Location - 30
