C313

Component ID: 49
Component : C313

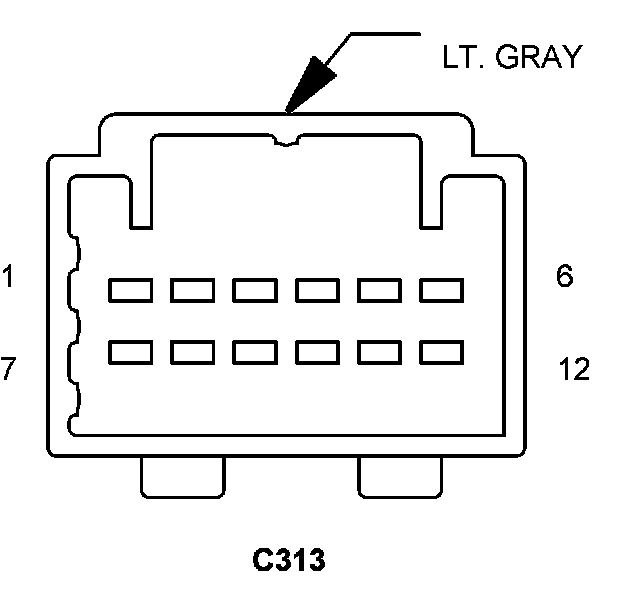

Connector:
Name : C313
Color : LT. GRAY
# of pins : 12
Gender : FEMALE




Pin Circuit Description
1 M27 18YL/LB RAIL LAMPS DRIVER
2 M22 18YL/OR COURTESY LAMPS DRIVER
3 M24 18YL/WT FRONT READING/COURTESY LAMPS DRIVER
4 G25 22VT/TN LIFTGATE SWITCH MUX
5 D25 20WT/VT PCI BUS
6 F316 20BK/PK FUSED ACCESSORY RELAY OUTPUT
7 P112 20BK/OR AUTO DAY/NIGHT MIRROR (+)
8 P114 20BK/LB AUTO DAY/NIGHT MIRROR (-)
9 A114 20GY/RD FUSED B(+)
10 Z327 18BK/WT GROUND
11 - -
12 Z113 18BK/DB GROUND

Component Location - 25




Component Location - 43

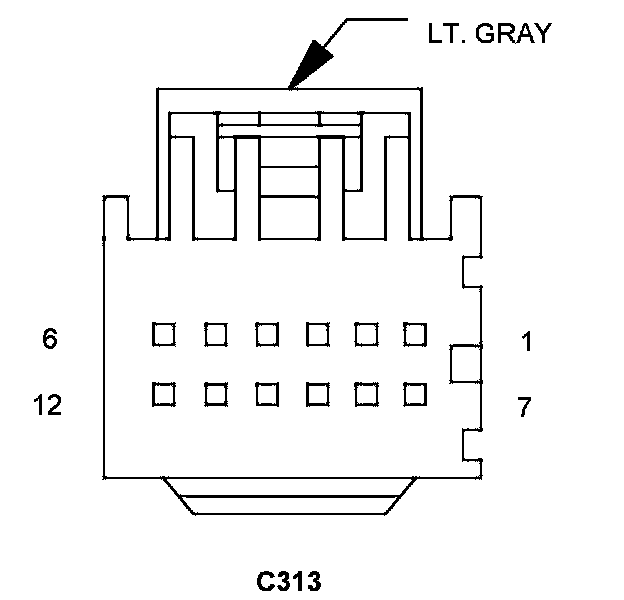

Connector:
Name : C313
Color : LT. GRAY
# of pins : 12
Gender : MALE




Pin Circuit Description
1 M27 18YL/LB RAIL LAMPS DRIVER
2 M22 18YL/OR COURTESY LAMPS DRIVER
3 M24 18YL/WT FRONT READING/COURTESY LAMPS DRIVER
4 G25 20VT/TN LIFTGATE SWITCH MUX
5 D25 20WT/VT PCI BUS
5 E12 18OR/GY PANEL LAMPS DRIVER
6 F316 20PK/OR FUSED ACCESSORY RELAY OUTPUT
7 P112 20TN/OR AUTO DAY/NIGHT MIRROR (+)
8 P114 20TN/WT AUTO DAY/NIGHT MIRROR (-)
9 A114 20GY/RD FUSED B(+)
10 Z327 18BK/WT GROUND
11 - -
12 Z113 18BK/DB GROUND

Component Location - 25




Component Location - 43
