C308

Component ID: 46
Component : C308

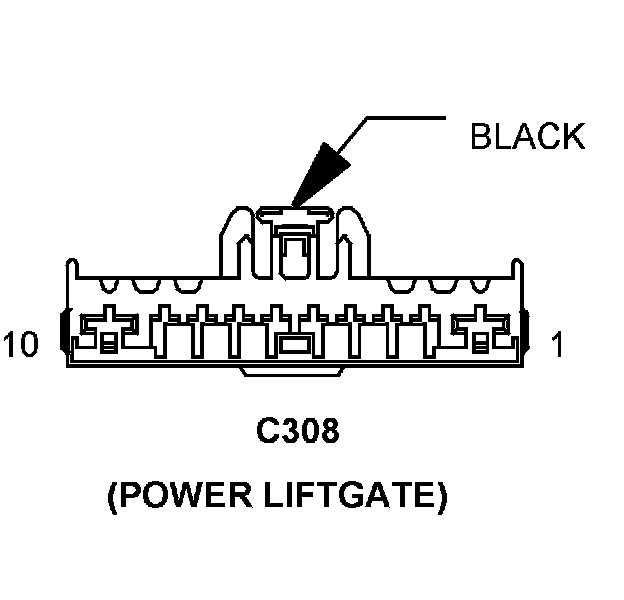

Connector:
Name : C308
Color : BLACK
# of pins : 10
Qualifier : (POWER LIFTGATE)
Gender : FEMALE




Pin Circuit Description
1 Q85 16TN/WT LIFTGATE LATCH RELEASE DRIVER
2 Q75 20OR/LB LEFT PINCH SENSOR SIGNAL
3 Q84 16TN/GY LIFTGATE LATCH CINCH DRIVER
4 Q901 20OR/VT LOGIC GROUND
5 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
6 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
7 Q94 22TN/LG LIFTGATE CHIME DRIVER
8 L1 18WT/LG BACKUP LAMP DRIVER
9 - -
10 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL

Component Location - 29




Component Location - 44

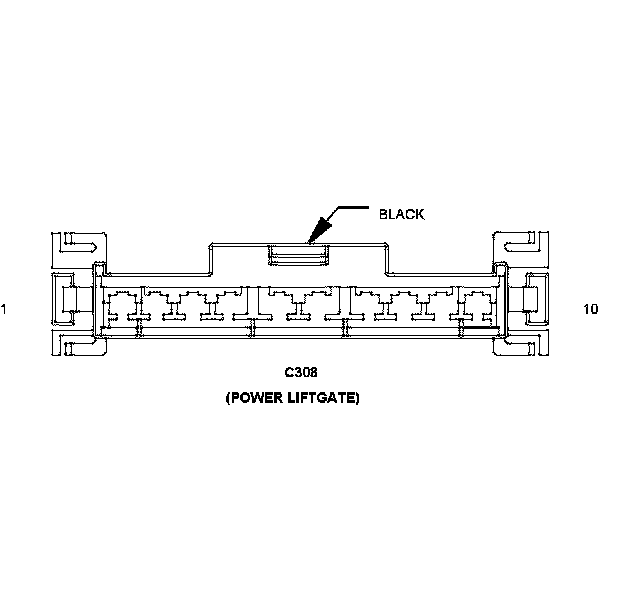

Connector:
Name : C308
Color : BLACK
# of pins : 10
Qualifier : (POWER LIFTGATE)
Gender : MALE




Pin Circuit Description
1 Q85 16TN/WT LIFTGATE LATCH RELEASE DRIVER
2 Q75 20OR/LB LEFT PINCH SENSOR SIGNAL
3 Q84 16TN/GY LIFTGATE LATCH CINCH DRIVER
4 Q901 20OR/VT LOGIC GROUND
5 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
6 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
7 Q94 22TN/LG LIFTGATE CHIME DRIVER
8 L1 20WT/LG BACKUP LAMP DRIVER
9 - -
10 G32 22VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL

Component Location - 29




Component Location - 44
