C307

Component ID: 45
Component : C307

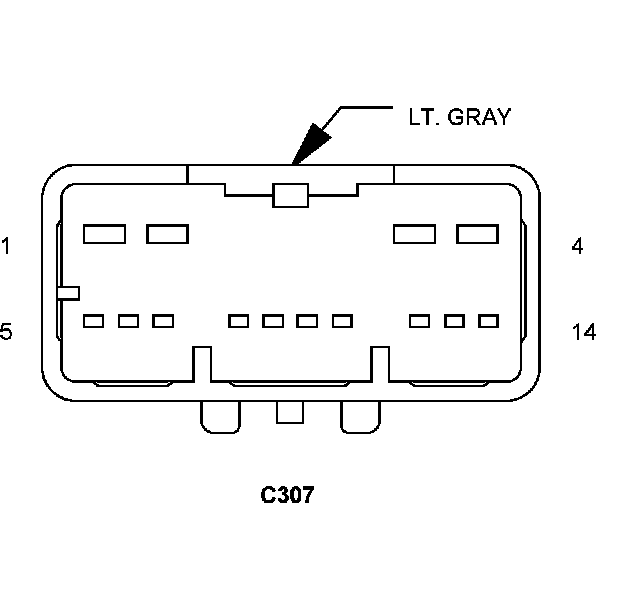

Connector:
Name : C307
Color : LT. GRAY
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 C15 12DB/WT REAR WINDOW DEFOGGER RELAY OUTPUT
2 W13 18BR/WT REAR WIPER MOTOR CONTROL
3 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
4 Z800 12BK GROUND
5 W17 20BR/LG REAR WIPER PARK SWITCH SENSE
6 L3 18WT/VT LICENSE LAMP DRIVER
7 P31 18TN/YL LIFTGATE RELEASE DRIVER
8 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
9 X970 22GY/OR CAMERA SIGNAL
10 X971 22GY/LB CAMERA RETURN
11 X972 22 CAMERA SHIELD
12 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
13 M11 18YL/VT LIFTGATE COURTESY LAMP DRIVER
14 Z927 20BK/LG GROUND

Component Location - 29




Component Location - 44






Connector:
Name : C307
Color : LT. GRAY
# of pins : 14
Gender : MALE




Pin Circuit Description
1 C15 12DB/WT REAR WINDOW DEFOGGER RELAY OUTPUT
2 W13 18BR/WT REAR WIPER MOTOR CONTROL
3 G78 22VT/OR LIFTGATE AJAR SWITCH SENSE
4 Z800 12BK GROUND
5 W17 20BR/LG REAR WIPER PARK SWITCH SENSE
6 L3 18WT/VT LICENSE LAMP DRIVER
7 P31 18TN/YL LIFTGATE RELEASE DRIVER
8 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
9 X970 22GY/OR CAMERA SIGNAL
10 X971 22GY/OR CAMERA RETURN
11 X972 22 CAMERA SHIELD
12 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
13 M11 18YL/VT LIFTGATE COURTESY LAMP DRIVER
14 Z927 20BK/LG GROUND

Component Location - 29




Component Location - 44
