C306

Component ID: 44

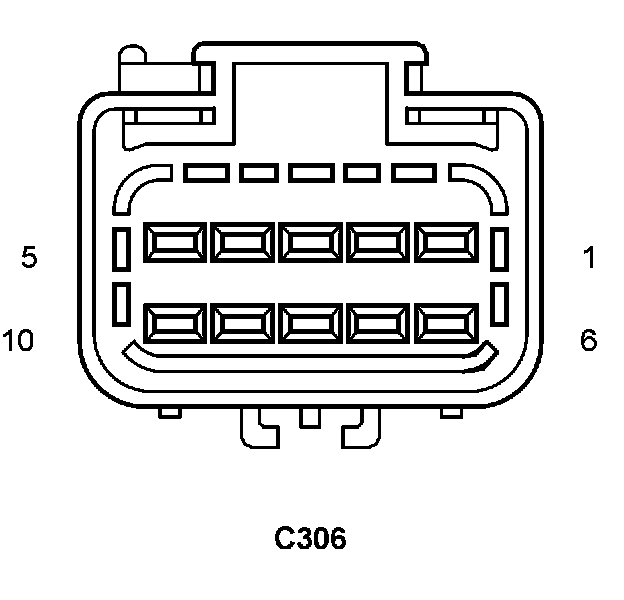

Component : C306

Connector:
Name : C306
Color :
# of pins : 10
Gender : FEMALE

Pin Circuit Description
1 Q112 14OR/BR PASSENGER REAR WINDOW DRIVER (UP)
2 Q212 14OR/VT PASSENGER REAR WINDOW DRIVER (DOWN)
3 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
4 P222 18VT/DG DOOR LOCK DRIVER
5 P292 18VT/LG DOOR UNLOCK DRIVER
6 E26 20OR/GY PANEL LAMPS DRIVER
7 G982 20VT/TN GROUND
8 Q2 20WT/TN PASSENGER REAR WINDOW SWITCH MUX
9 X206 18DG/LG AMPLIFIED RIGHT REAR DOOR SPEAKER (+)
10 X296 18DG/GY AMPLIFIED RIGHT REAR DOOR SPEAKER (-)

Component Location - 30

Component Location - 42

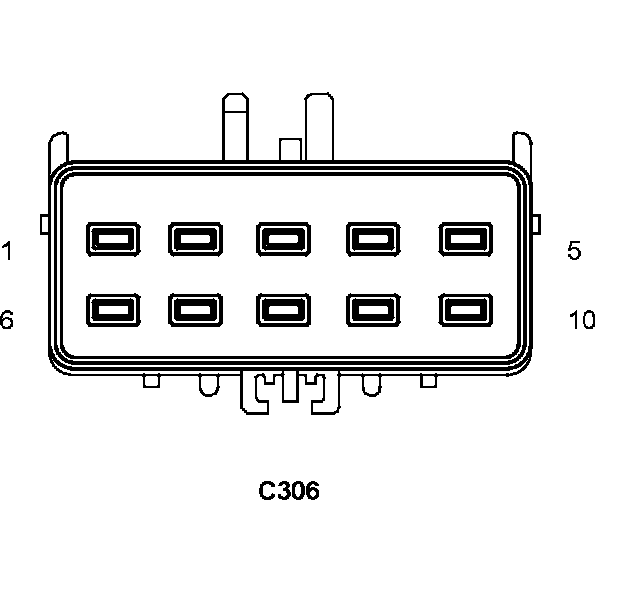

Connector:
Name : C306
Color :
# of pins : 10
Gender : MALE

Component Location - 42
