C304

Component ID: 42
Component : C304

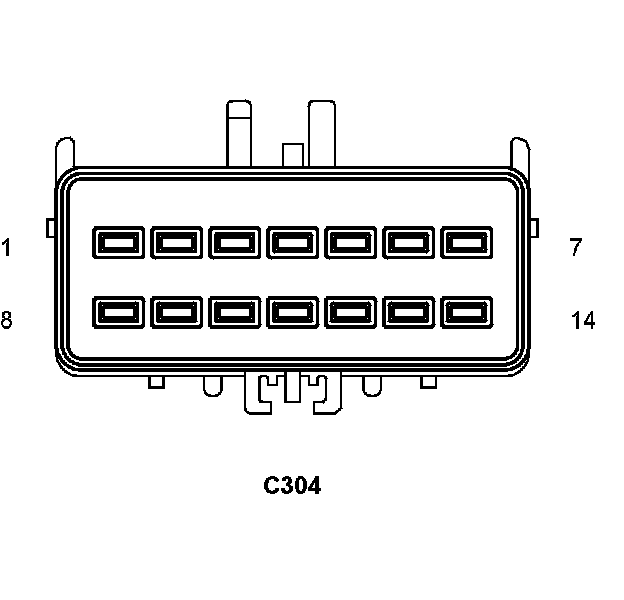

Connector:
Name : C304
Color :
# of pins : 14
Gender : FEMALE

Pin Circuit Description
1 G982 20VT/TN GROUND
2 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
3 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
4 Q212 14OR/VT PASSENGER REAR WINDOW DRIVER (DOWN)
5 A214 18RD/LB FUSED B(+)
6 P222 18VT/DG DOOR LOCK DRIVER
7 P292 18VT/LG DOOR UNLOCK DRIVER
8 F516 12PK FUSED DOOR NODE RELAY OUTPUT
9 E26 20OR/GY PANEL LAMPS DRIVER
10 Q112 14OR/BR PASSENGER REAR WINDOW DRIVER (UP)
11 Q2 20WT/TN PASSENGER REAR WINDOW SWITCH MUX
12 D25 20WT/VT PCI BUS
13 D123 20WT/BR FLASH PROGRAM ENABLE
14 Z822 12BK/BR GROUND

Component Location - 30

Component Location - 40

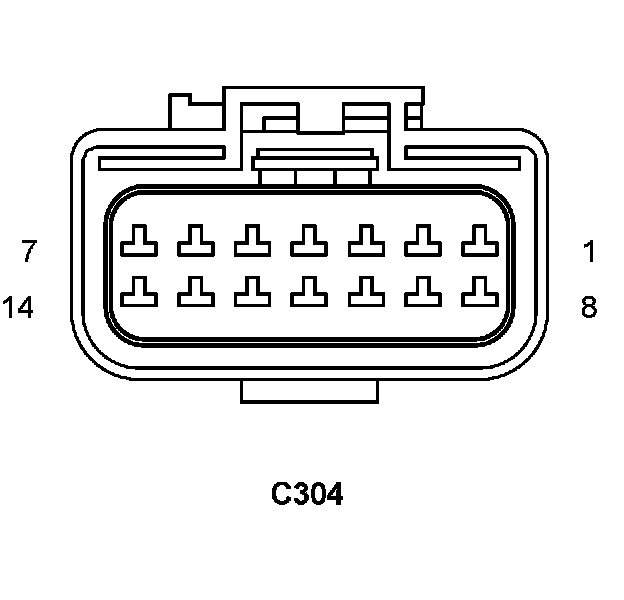

Connector:
Name : C304
Color :
# of pins : 14
Gender : MALE

Component Location - 40
