C303

Component ID: 41
Component : C303

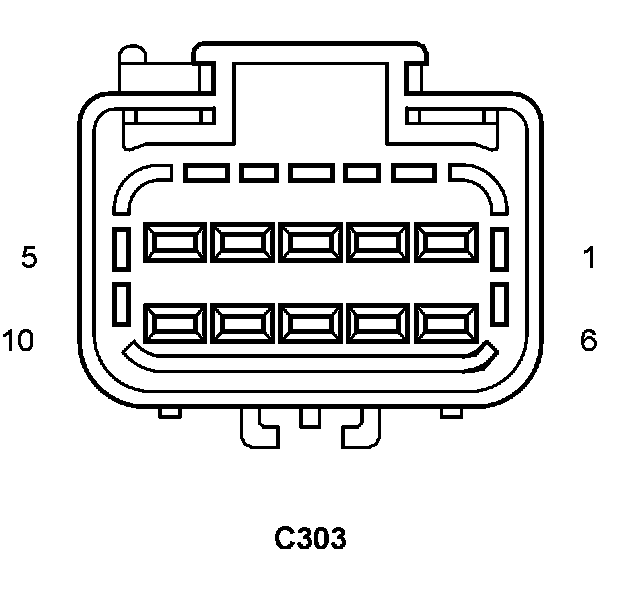

Connector:
Name : C303
Color :
# of pins : 10
Gender : FEMALE




Pin Circuit Description
1 Q111 14TN/YL DRIVER REAR WINDOW DRIVER (UP)
2 Q211 14TN/LB DRIVER REAR WINDOW DRIVER (DOWN)
3 G77 20VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
4 P222 18VT/DG DOOR LOCK DRIVER
5 P292 18VT/LG DOOR UNLOCK DRIVER
6 E25 20OR/GY PANEL LAMPS DRIVER
7 G983 20VT/OR GROUND
8 Q1 20OR/WT DRIVER REAR WINDOW SWITCH MUX
9 X205 18GY/LG AMPLIFIED LEFT REAR DOOR SPEAKER (+)
10 X295 18GY/DG AMPLIFIED LEFT REAR DOOR SPEAKER (-)

Component Location - 27




Component Location - 42

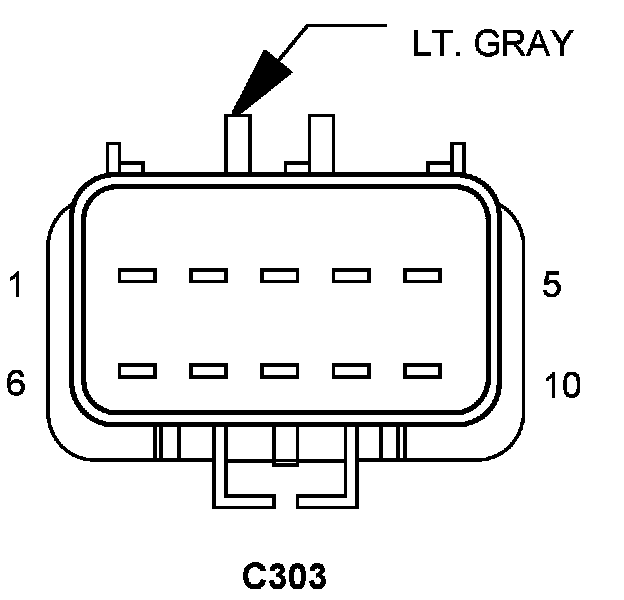

Connector:
Name : C303
Color : LT. GRAY
# of pins : 10
Gender : MALE




Pin Circuit Description
1 Q111 14OR/BR DRIVER REAR WINDOW DRIVER (UP)
2 Q211 14OR/VT DRIVER REAR WINDOW DRIVER (DOWN)
3 G77 20VT/YL LEFT REAR DOOR AJAR SWITCH SENSE
4 P222 18VT/DG DOOR LOCK DRIVER
5 P292 18VT/LG DOOR UNLOCK DRIVER
6 E25 20OR/GY PANEL LAMPS DRIVER
7 G983 20VT/TN GROUND
8 Q1 20WT/TN DRIVER REAR WINDOW SWITCH MUX
9 X205 18DG/LG AMPLIFIED LEFT REAR DOOR SPEAKER (+)
10 X295 18DG/GY AMPLIFIED LEFT REAR DOOR SPEAKER (-)

Component Location - 27




Component Location - 42
