C301

Component ID: 39
Component : C301

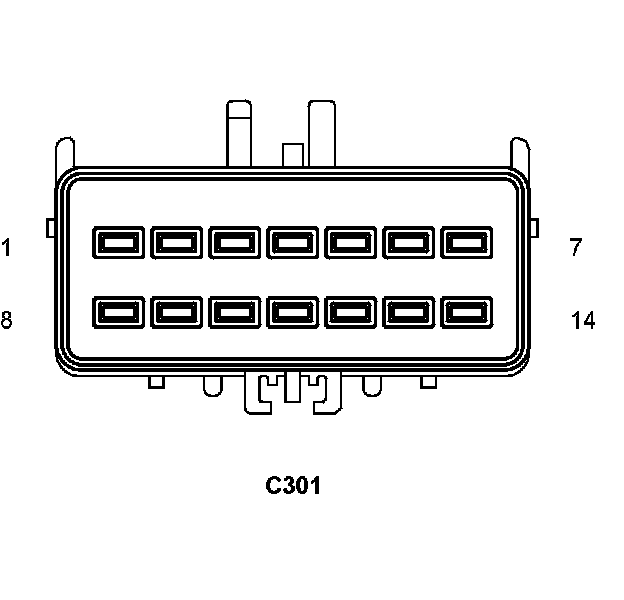

Connector:
Name : C301
Color :
# of pins : 14
Gender : FEMALE

Pin Circuit Description
1 G983 20VT/OR GROUND
2 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
3 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
4 Q211 14TN/LB DRIVER REAR WINDOW DRIVER (DOWN)
5 A215 18RD/LG FUSED B(+)
6 P112 20TN/OR AUTO DAY/NIGHT MIRROR (+)
7 P114 20TN/WT AUTO DAY/NIGHT MIRROR (-)
8 F516 12PK FUSED DOOR NODE RELAY OUTPUT
9 E25 20OR/GY PANEL LAMPS DRIVER
10 Q111 14TN/YL DRIVER REAR WINDOW DRIVER (UP)
11 Q1 20OR/WT DRIVER REAR WINDOW SWITCH MUX
12 D25 20WT/VT PCI BUS
13 D123 20WT/BR FLASH PROGRAM ENABLE
14 Z821 12BK/BR GROUND

Component Location - 25

Component Location - 40

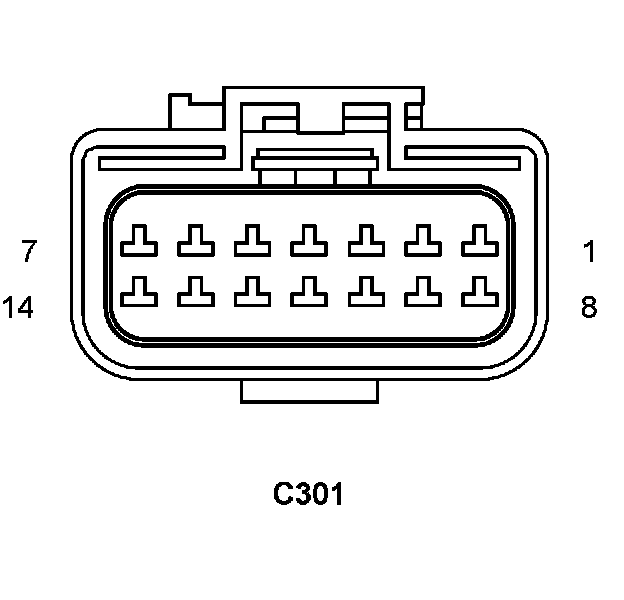

Connector:
Name : C301
Color :
# of pins : 14
Gender : MALE

Component Location - 40
