C300

Component ID: 38
Component : C300

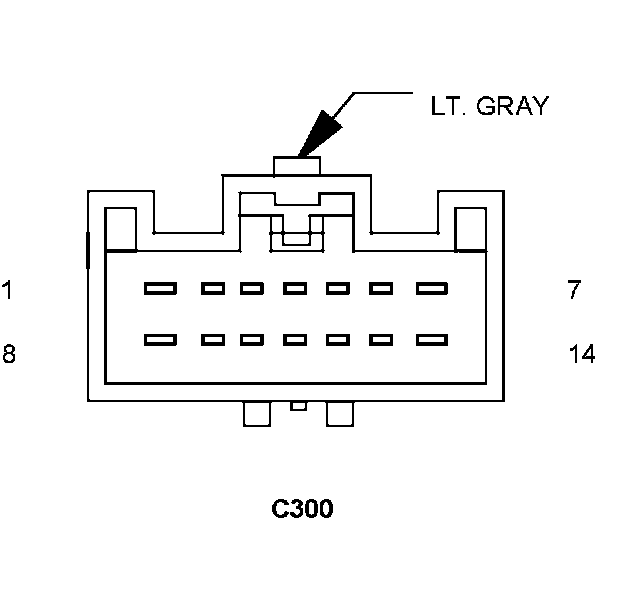

Connector:
Name : C300
Color : LT. GRAY
# of pins : 14
Gender : FEMALE




Pin Circuit Description
1 P188 16LG/VT RIGHT MIDDLE ROW SEAT HEATER B(+) DRIVER
2 - -
3 C31 20LB/YL REAR FAN SENSE
4 C931 22DB/TN REAR FAN SENSE RETURN
5 Z870 20BK/YL GROUND
6 C11 22LB/OR REAR FAN SENSE SUPPLY
7 F525 16TN/PK FUSED RUN RELAY OUTPUT
8 P187 16LG/BR LEFT MIDDLE ROW SEAT HEATER B(+) DRIVER
9 G21 22VT/WT REAR FAN ON INDICATOR DRIVER
10 P189 20LG/WT MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY
11 P196 20LG/LB RIGHT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT
12 P197 20LG/DG LEFT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT
13 E12 18OR/GY PANEL LAMPS DRIVER
13 E12 18OR/GY PANEL LAMPS DRIVER
14 - -

Component Location - 23




Component Location - 24




Component Location - 26




Component Location - 30

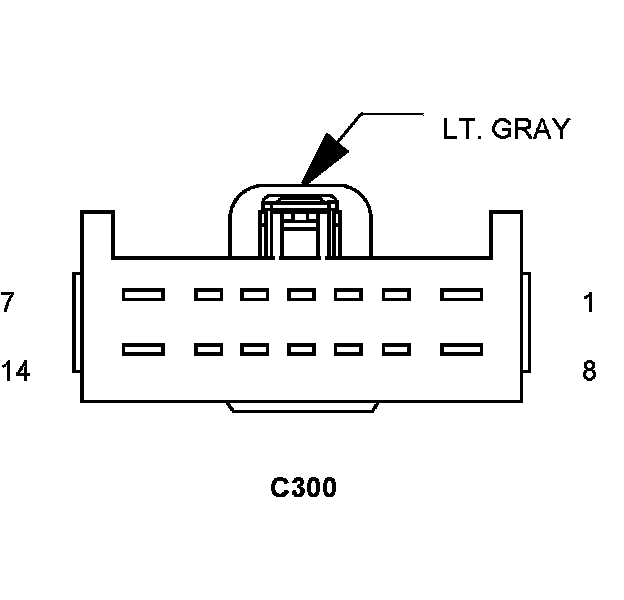

Connector:
Name : C300
Color : LT. GRAY
# of pins : 14
Gender : MALE




Pin Circuit Description
1 P188 16LG/VT RIGHT MIDDLE ROW SEAT HEATER B(+) DRIVER
2 - -
3 C31 20LB/YL REAR FAN SENSE
4 C931 20DB/TN REAR FAN SENSE RETURN
5 Z870 20BK/YL GROUND
6 C11 22LB/OR REAR FAN SENSE SUPPLY
7 F525 16TN/PK FUSED RUN RELAY OUTPUT
8 P187 16LG/BR LEFT MIDDLE ROW SEAT HEATER B(+) DRIVER
9 G21 22VT/WT REAR FAN ON INDICATOR DRIVER
10 P189 20LG/WT MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY
10 P189 20LG/WT MIDDLE ROW SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY
11 P196 20LG/LB RIGHT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT
12 P197 20LG/DG LEFT MIDDLE ROW SEAT TEMPERATURE SENSOR INPUT
13 E12 18OR/GY PANEL LAMPS DRIVER
14 - -

Component Location - 23




Component Location - 24




Component Location - 26




Component Location - 30
