C205

Component ID: 37
Component : C205

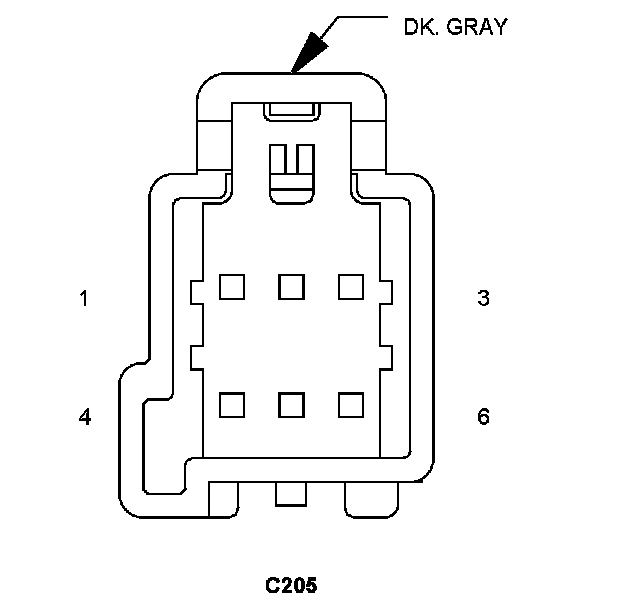

Connector:
Name : C205
Color : DK. GRAY
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 X53 20DG RADIO LEFT AUDIO (+)
2 X290 18GY/OR AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (-)
3 X54 20GY RADIO RIGHT AUDIO (+)
4 X55 20DG/BR RADIO LEFT AUDIO (-)
5 X200 18GY/DB AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (+)
6 X56 20GY/BR RADIO RIGHT AUDIO (-)

Component Location - 14




Component Location - 15




Component Location - 18




Component Location - 25




Component Location - 30

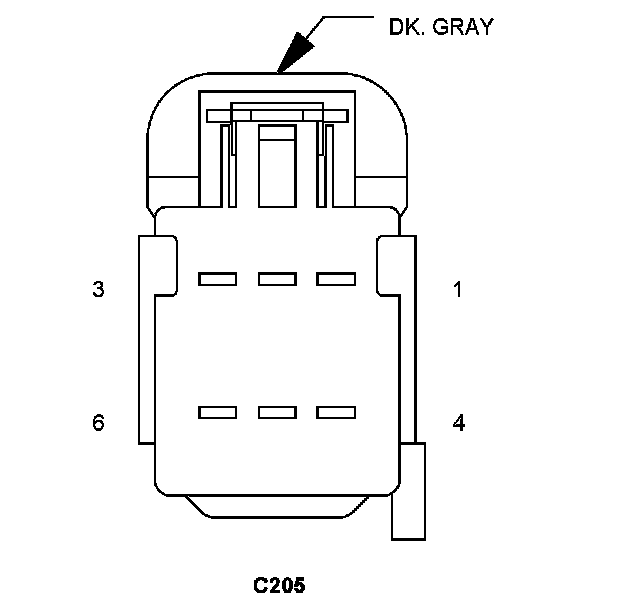

Connector:
Name : C205
Color : DK. GRAY
# of pins : 6
Gender : MALE




Pin Circuit Description
1 X53 20DG RADIO LEFT AUDIO (+)
Pin Circuit Description
1 X201 18GY/VT RADIO LEFT AUDIO (+)
2 X290 18GY/OR AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (-)
2 X296 18DG/GY AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (-)
3 X54 20GY RADIO RIGHT AUDIO (+)
3 X202 18DG/VT RADIO RIGHT AUDIO (+)
4 X55 20DG/BR RADIO LEFT AUDIO (-)
4 X291 18GY/YL RADIO LEFT AUDIO (-)
5 X200 18GY/DB AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (+)
5 X206 18DG/LG AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (+)
6 X56 20GY/BR RADIO RIGHT AUDIO (-)
6 X292 18DG/YL RADIO RIGHT AUDIO (-)

Component Location - 14




Component Location - 15




Component Location - 18




Component Location - 25




Component Location - 30
