C202

Component ID: 35
Component : C202

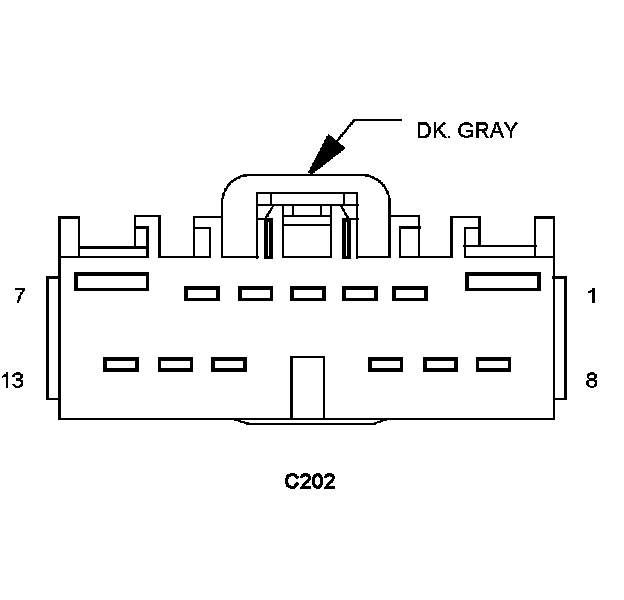

Connector:
Name : C202
Color : DK. GRAY
# of pins : 13
Gender : FEMALE




Pin Circuit Description
1 Z134 12BK/LG GROUND
2 C56 20LB/DB FRONT BLOWER MOTOR CONTROL
2 C34 22DB/LB COMMON DOOR DRIVER (B)
3 C32 20TN/DB RECIRCULATION DOOR DRIVER (A)
3 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
4 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C61 22DB/LG DRIVER BLEND DOOR DRIVER (A)
6 C35 22LB/OR FRONT MODE DOOR DRIVER (A)
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 C132 20DB/YL RECIRCULATION DOOR DRIVER (B)
9 C133 22DB/WT PASSENGER BLEND DOOR DRIVER (B)
10 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
11 C135 20DB/GY FRONT MODE DOOR DRIVER (B)
12 C21 20LG/DB EVAPORATOR TEMPERATURE SENSOR SIGNAL
12 C21 22DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
13 C121 20DB/DG SENSOR GROUND

Component Location - 14




Component Location - 15




Component Location - 20

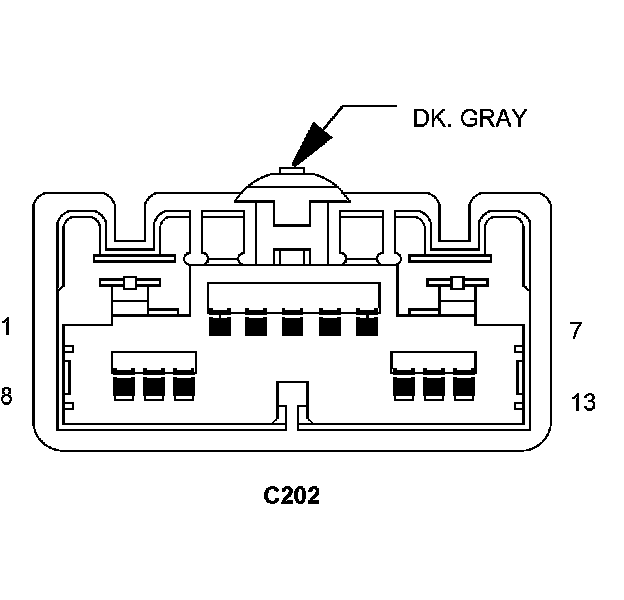

Connector:
Name : C202
Color : DK. GRAY
# of pins : 13
Gender : MALE




Pin Circuit Description
1 Z134 12BK/OR GROUND
2 C56 20LB/DB FRONT BLOWER MOTOR CONTROL
2 C34 22DB/LB COMMON DOOR DRIVER (B)
3 C32 20TN/DB RECIRCULATION DOOR DRIVER (A)
3 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
4 C33 20LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
6 C35 20LB/OR FRONT MODE DOOR DRIVER (A)
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 C132 20DB/YL RECIRCULATION DOOR DRIVER (B)
9 C133 20DB/WT PASSENGER BLEND DOOR DRIVER (B)
10 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
11 C135 20DB/GY FRONT MODE DOOR DRIVER (B)
12 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
13 C121 20DB/DG SENSOR GROUND

Component Location - 14




Component Location - 15




Component Location - 20
