C200

Component ID: 33
Component : C200

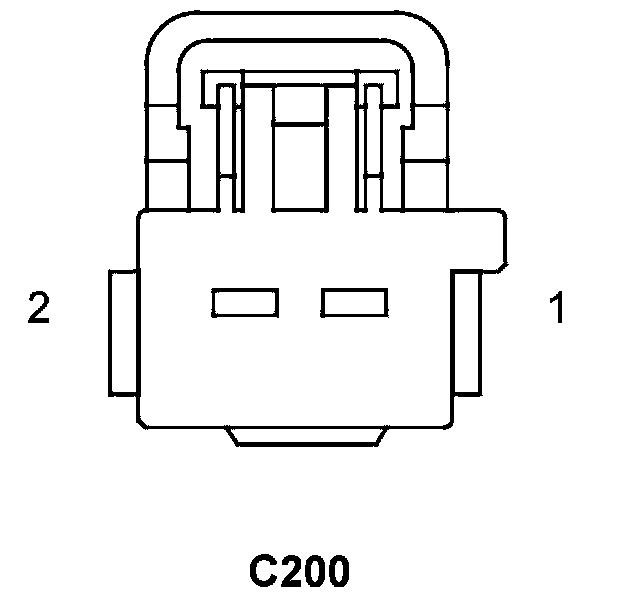

Connector:
Name : C200
Color :
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
2 Z746 16BK/DB GROUND

Component Location - 14




Component Location - 23

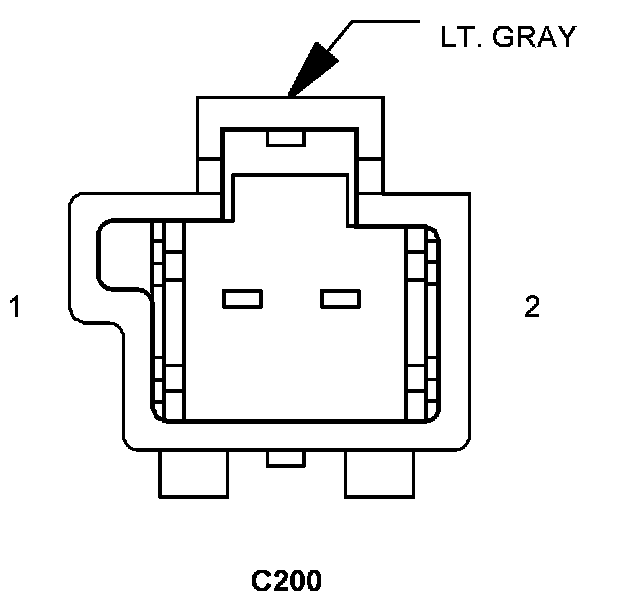

Connector:
Name : C200
Color : LT. GRAY
# of pins : 2
Gender : MALE




Pin Circuit Description
1 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
2 Z746 16BK/DB GROUND

Component Location - 14




Component Location - 23
