C108

Component ID: 32
Component : C108

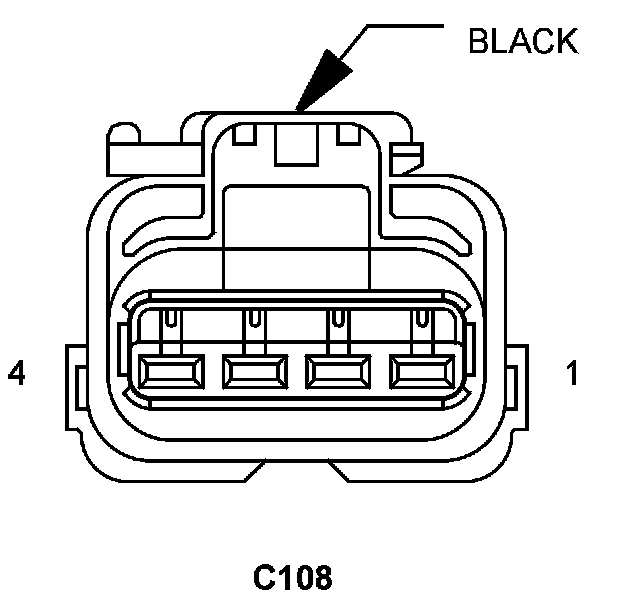

Connector:
Name : C108
Color : BLACK
# of pins : 4
Gender : FEMALE

Pin Circuit Description
1 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
2 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
3 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
4 B9 18DG/LG LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY

Component Location - 5

Component Location - 7

Component Location - 8

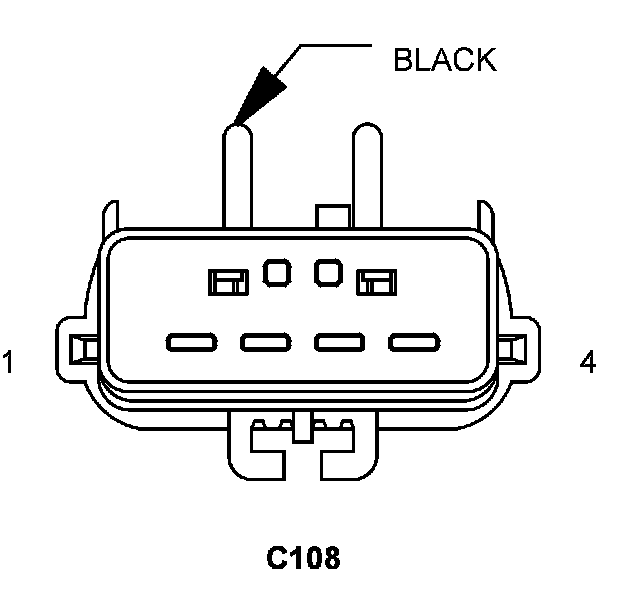

Connector:
Name : C108
Color : BLACK
# of pins : 4
Gender : MALE

Component Location - 7

Component Location - 8
