C107

Component ID: 31
Component : C107

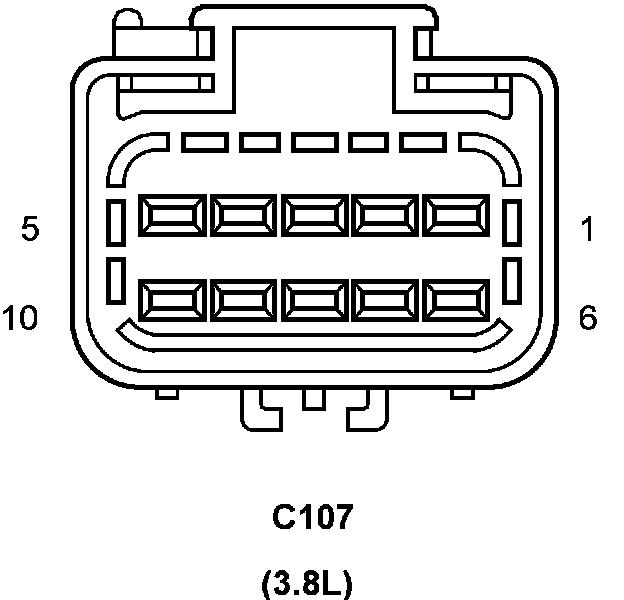

Connector:
Name : C107
Color :
# of pins : 10
Qualifier : (3.8L)
Gender : FEMALE

Pin Circuit Description
1 K34 20DB/LG EGR SIGNAL
2 - -
3 K900 20DB/DG SENSOR GROUND
4 Z335 18BK/WT GROUND
5 K2 18VT/OR ECT SIGNAL
6 K35 18DB/VT EGR CONTROL
7 K18 16DB/OR COIL 3 CONTROL
8 - -
9 - -
10 K17 16DB/TN COIL 2 CONTROL

Component Location - 11

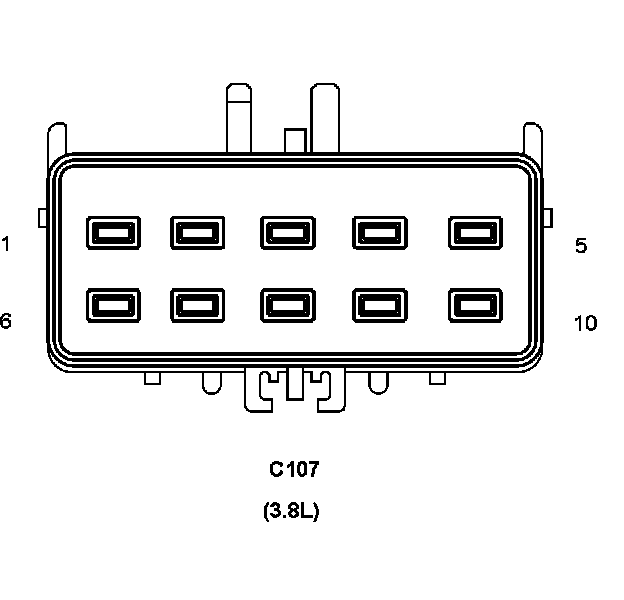

Connector:
Name : C107
Color :
# of pins : 10
Qualifier : (3.8L)
Gender : MALE
