C105

Component ID: 29
Component : C105

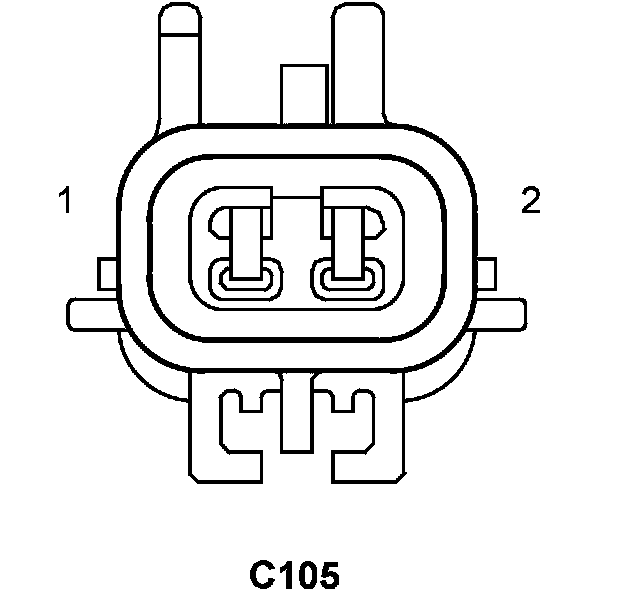

Connector:
Name : C105
Color :
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 K173 20BR/VT RAD FAN RELAY CONTROL
Pin Circuit Description
1 K173 18BR/VT RAD FAN RELAY CONTROL
2 A104 14YL/RD FUSED B(+)

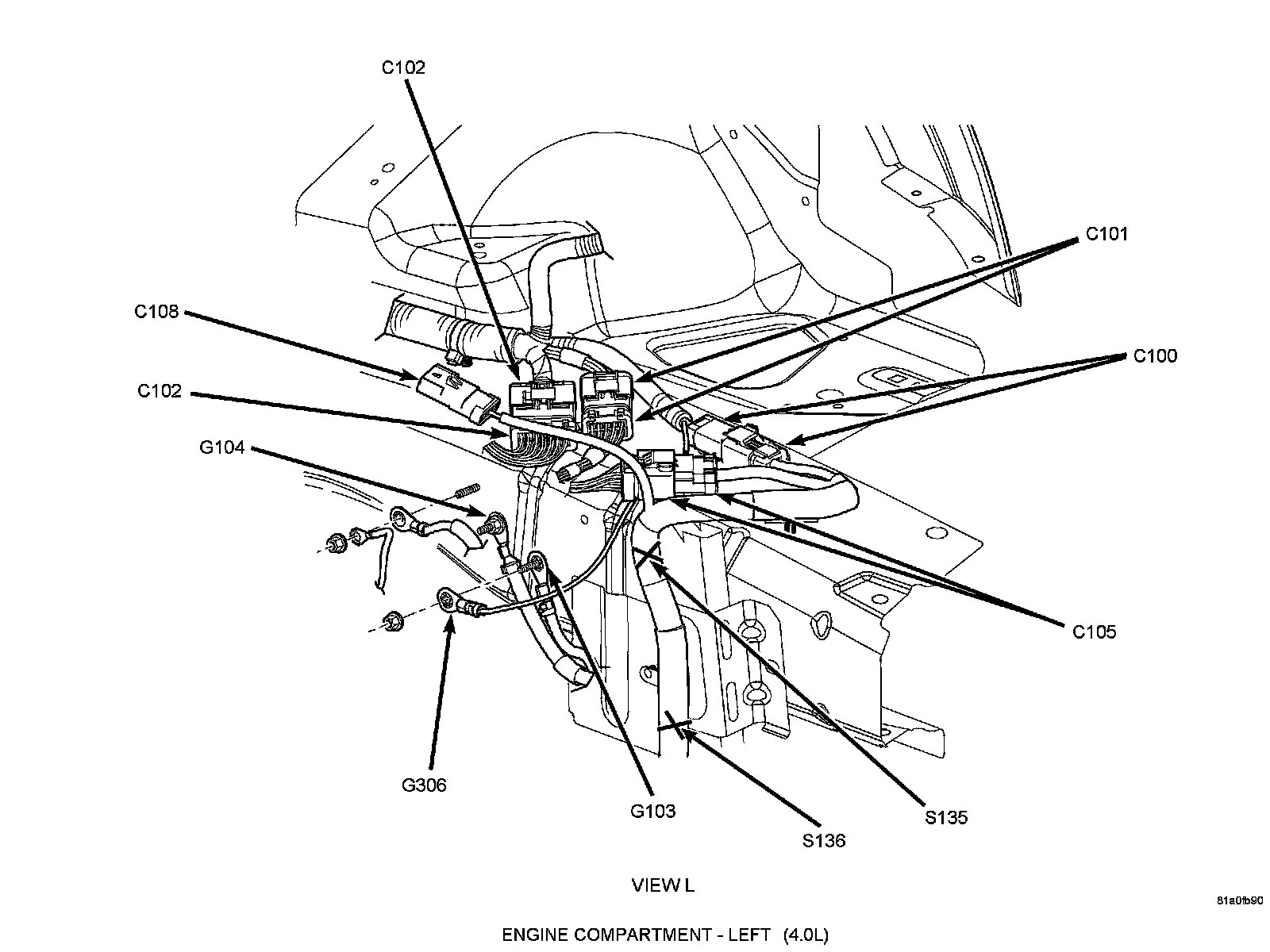

Component Location - 1

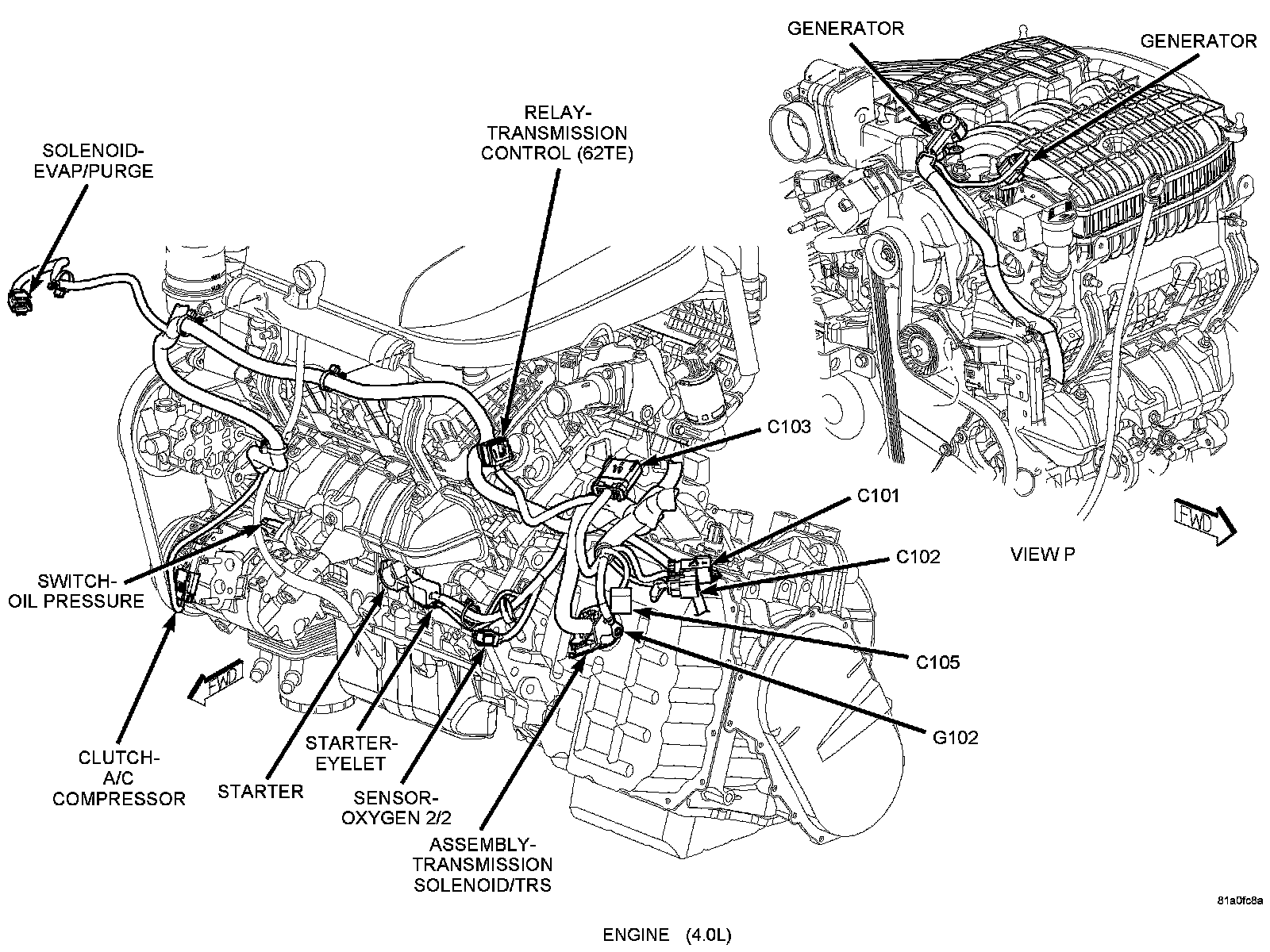

Component Location - 4

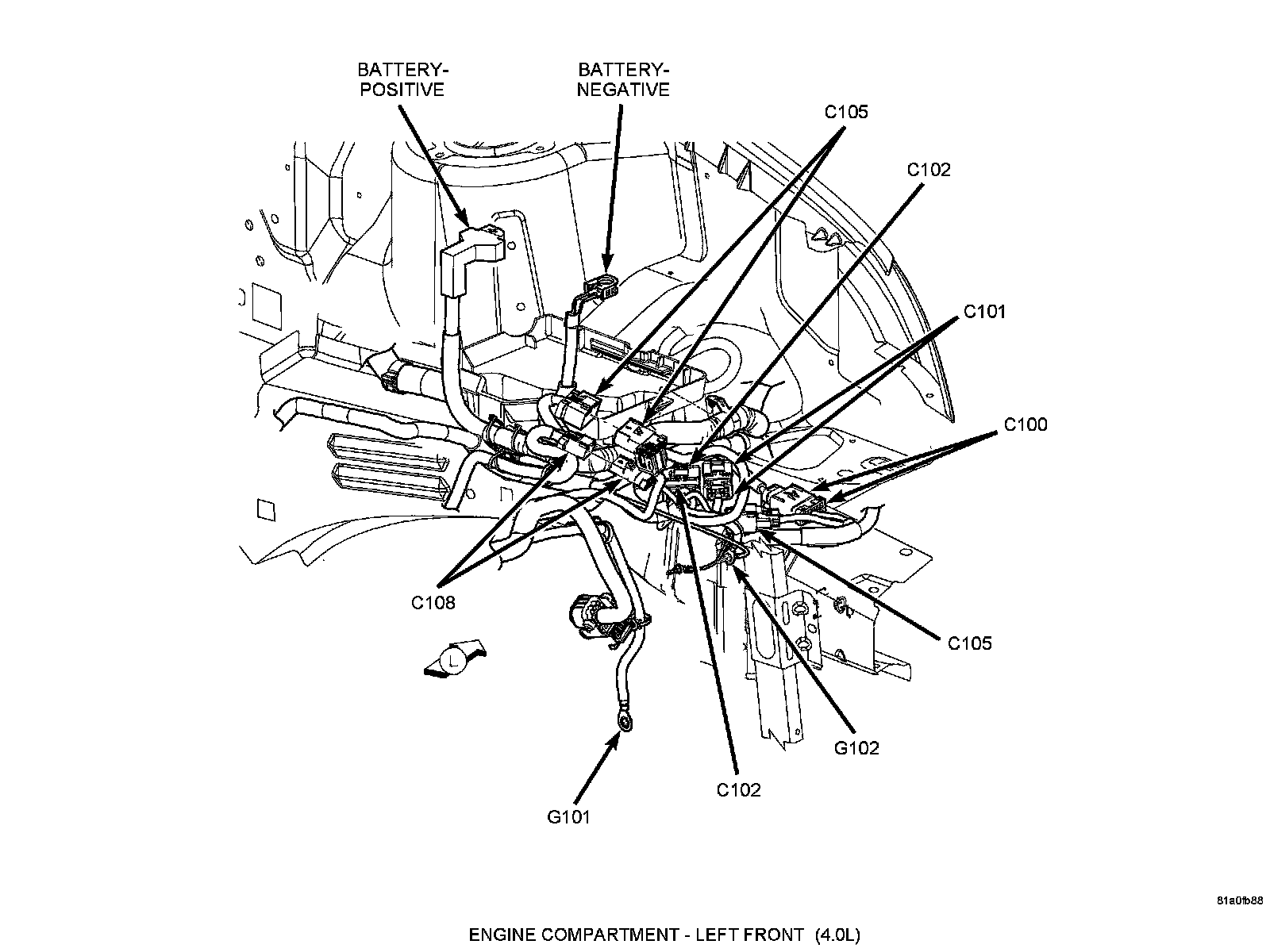

Component Location - 5

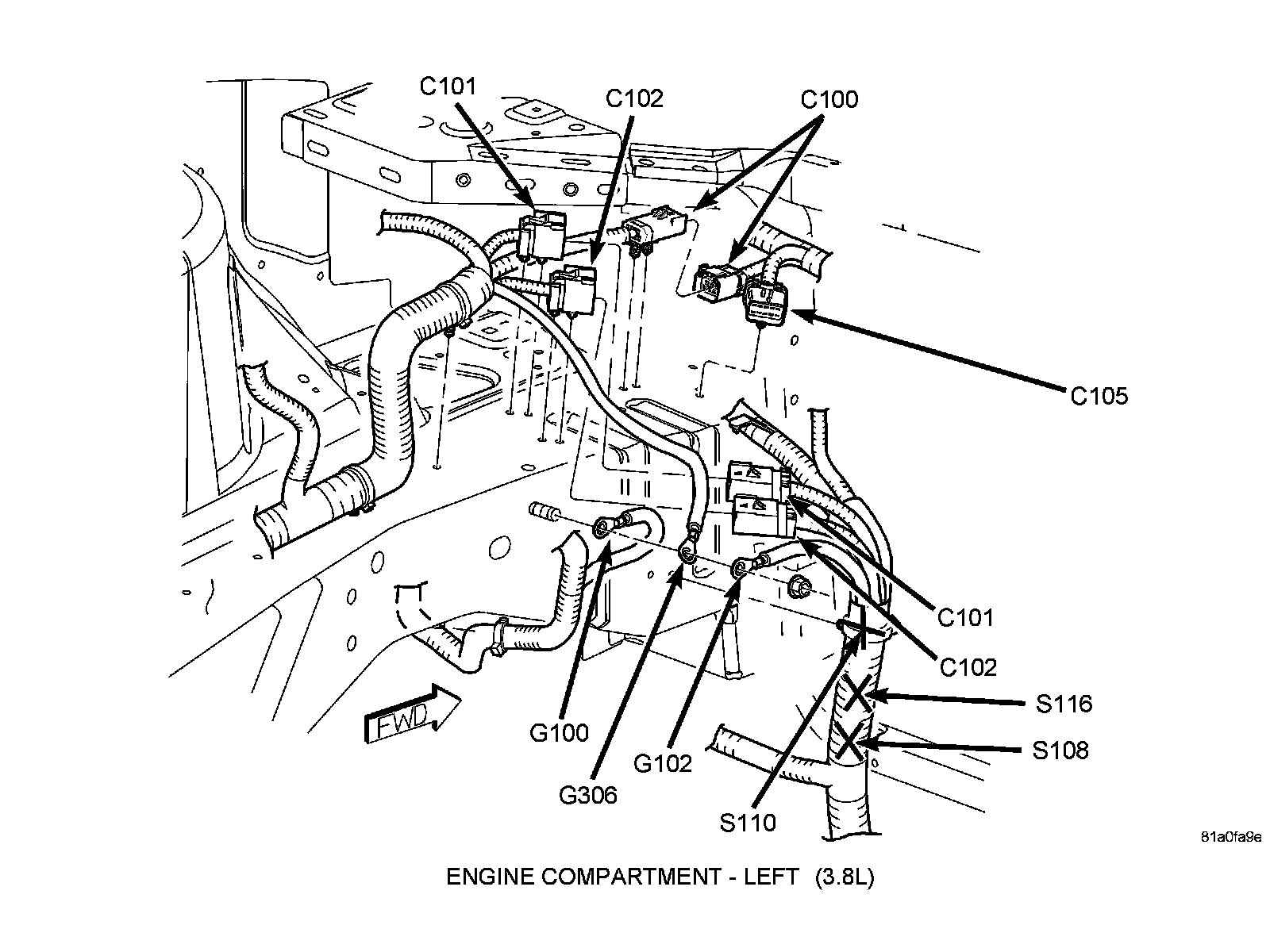

Component Location - 7




Component Location - 8




Component Location - 13

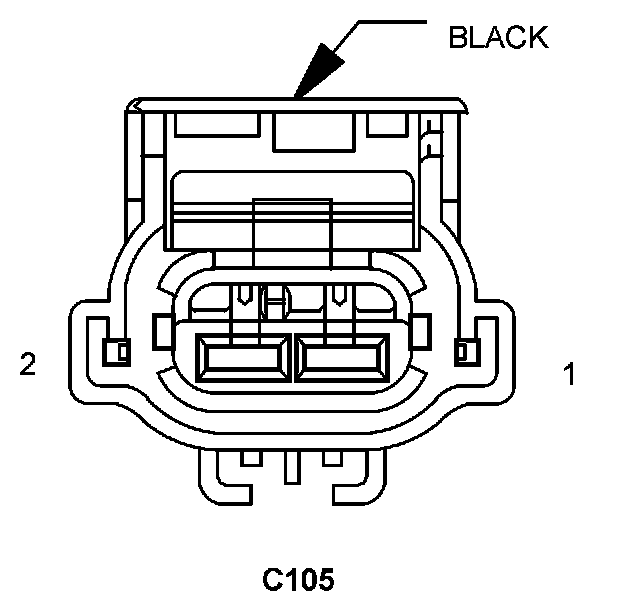

Connector:
Name : C105
Color : BLACK
# of pins : 2
Gender : MALE




Pin Circuit Description
1 K173 18BR/VT RAD FAN RELAY CONTROL
2 A104 14YL/RD FUSED B(+)

Component Location - 1




Component Location - 4




Component Location - 5




Component Location - 7




Component Location - 8




Component Location - 13
