C103

Component ID: 27
Component : C103

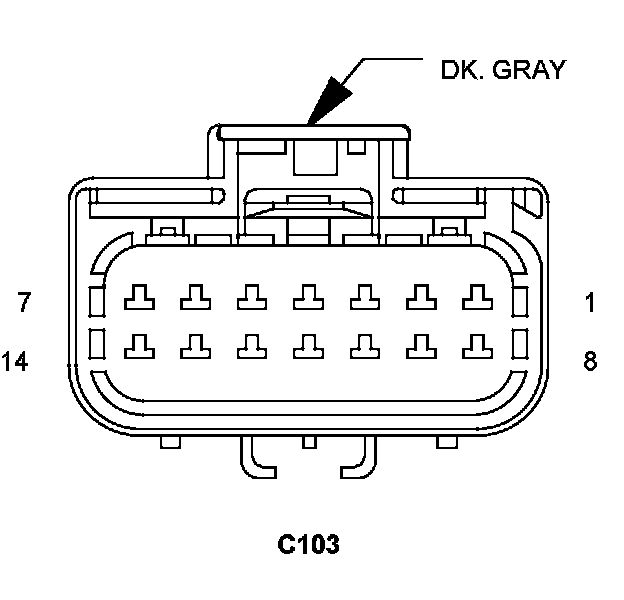

Connector:
Name : C103
Color : DK. GRAY
# of pins : 14
Gender : FEMALE

Pin Circuit Description
1 A107 12TN/RD FUSED B(+) (PUMP)
2 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
3 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
4 F500 18DG/PK FUSED RUN RELAY OUTPUT
5 Z107 12BK/DG GROUND
6 B1 18DG/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
7 - -
8 D364 20WT/BR DYNAMICS SENSOR LOW DATA LINK
9 D365 20WT/OR DYNAMICS SENSOR HIGH DATA LINK
10 Z107 12BK/DG GROUND
11 D64 20WT/LB CAN C BUS (-)
12 D65 20WT/LG CAN C BUS (+)
13 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
14 A111 12DG/RD FUSED B(+) (VALVE)

Component Location - 13

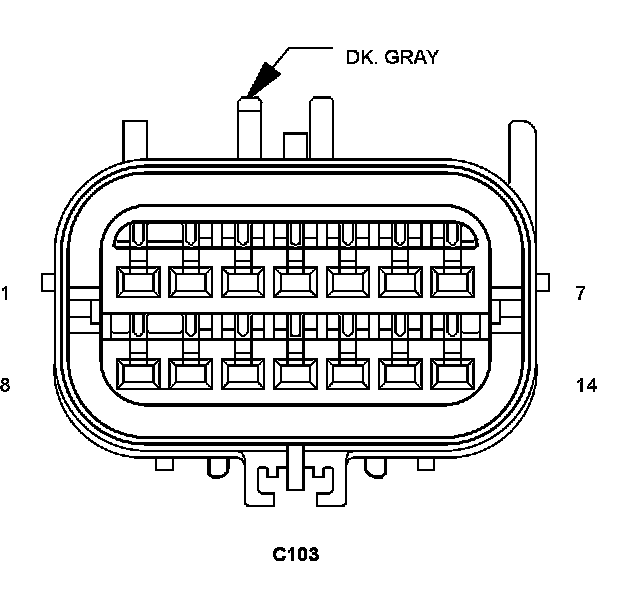

Connector:
Name : C103
Color : DK. GRAY
# of pins : 14
Gender : MALE
