C102

Component ID: 26
Component : C102

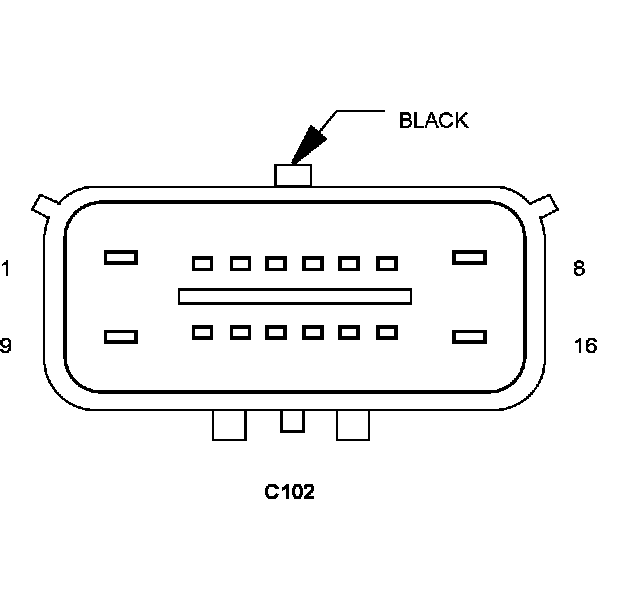

Connector:
Name : C102
Color : BLACK
# of pins : 16
Gender : FEMALE

Pin Circuit Description
1 F500 18DG/PK FUSED RUN RELAY OUTPUT
2 - -
3 K400 20BR/VT APP SENSOR GROUND 2
4 K107 20VT/WT ESM SIGNAL
5 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
6 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
7 D64 20WT/LB CAN C BUS (-)
8 D65 20WT/LG CAN C BUS (+)
9 K29 20WT/BR APP SIGNAL 2
10 V38 20VT/OR S/C SIGNAL 2
11 D364 20WT/BR DYNAMICS SENSOR LOW DATA LINK
12 D365 20WT/OR DYNAMICS SENSOR HIGH DATA LINK
13 V37 20VT S/C SIGNAL 1
14 F856 20YL/PK 5 VOLT SUPPLY
15 T5 20DG/YL AUTOSTICK UPSHIFT SIGNAL
16 Z111 18BK/WT GROUND

Component Location - 1

Component Location - 4

Component Location - 7

Component Location - 8

Component Location - 13

Connector:
Name : C102
Color :
# of pins : 16
Gender : MALE

Component Location - 4

Component Location - 7

Component Location - 8

Component Location - 13
