Body Control Module
Component ID: 174
Component : MODULE-BODY CONTROL
Connector:
Name : MODULE-BODY CONTROL C1
Color : BLACK
# of pins : 6
Pin Circuit Description
1 A101 12VT/RD FUSED B(+)
2 A101 12VT/RD FUSED B(+)
3 A114 18GY/RD FUSED B(+)
4 Z100 16BK/VT GROUND
5 F20 18PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 A701 18BR/RD FUSED B(+)

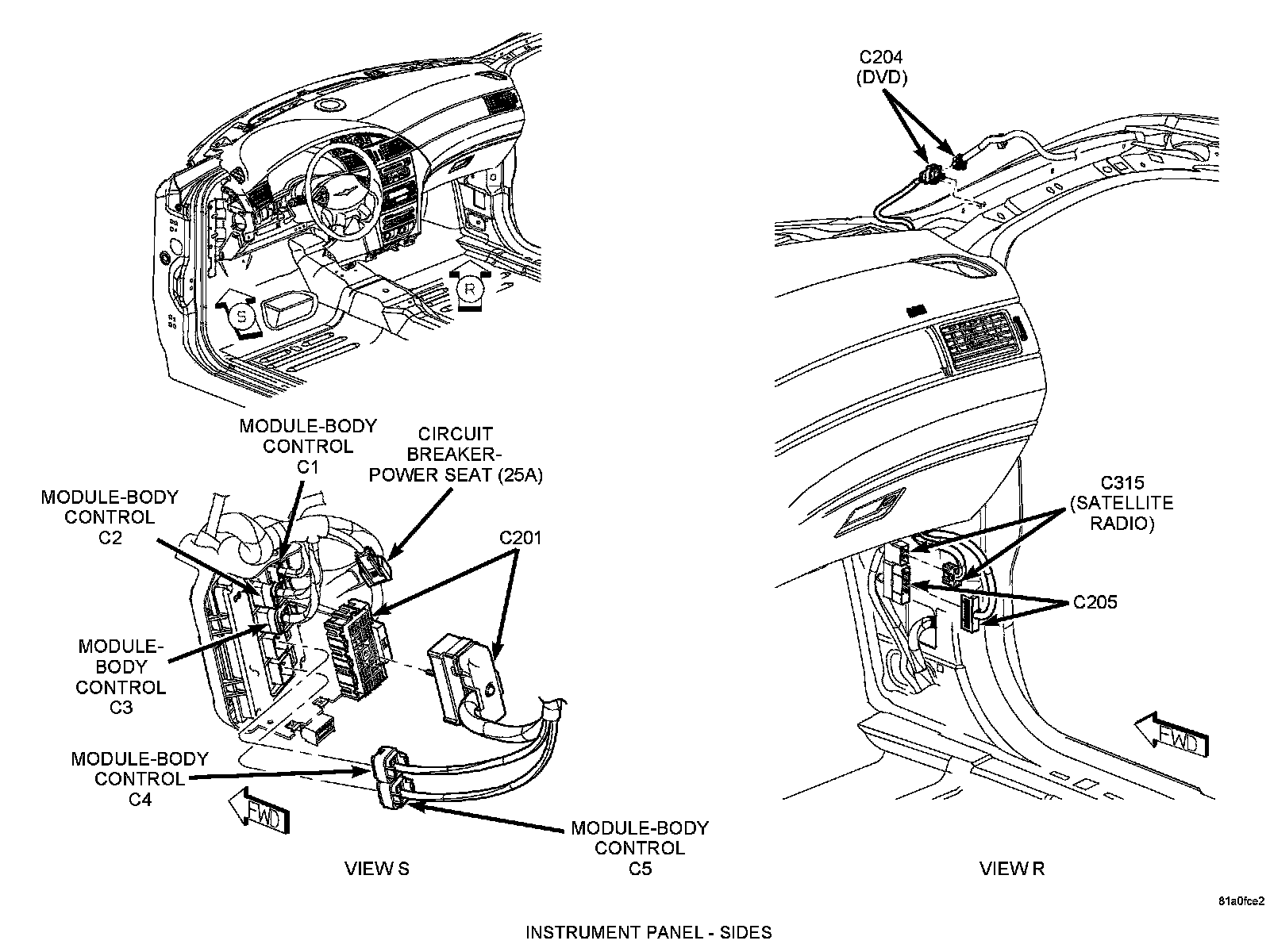

Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25

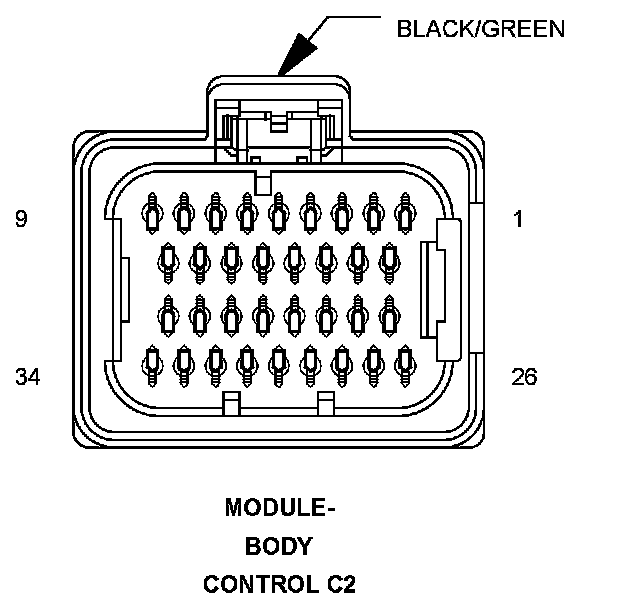

Connector:
Name : MODULE-BODY CONTROL C2
Color : BLACK/GREEN
# of pins : 34
Pin Circuit Description
1 W13 18BR/WT REAR WIPER MOTOR CONTROL
2 C918 20BK/LB SENSOR GROUND
3 L1 18WT/LG BACKUP LAMP DRIVER
4 G77 20VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
5 P31 18TN/YL LIFTGATE RELEASE DRIVER
6 M24 18YL/WT FRONT READING/COURTESY LAMPS DRIVER
7 M22 18YL/OR COURTESY LAMPS DRIVER
8 M11 18YL/VT LIFTGATE COURTESY LAMP DRIVER
9 - -
10 - -
11 - -
12 - -
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 Z10 18BK/TN GROUND
20 - -
21 - -
22 - -
23 - -
24 - -
25 - -
26 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
27 G10 20VT/LG DRIVER SEAT BELT SWITCH SENSE
28 C818 20LB/OR A/C PRESSURE SENSOR SUPPLY
29 G25 20VT/TN LIFTGATE SWITCH MUX
30 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
31 G31 20OR/VT AAT SIGNAL
32 C18 20LB/BR A/C PRESSURE TRANSDUCER SIGNAL
33 D25 20WT/VT PCI BUS
34 - -
Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25

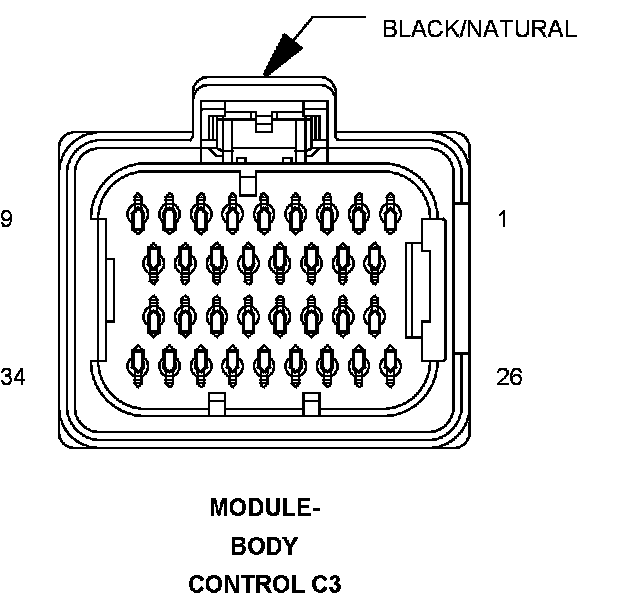

Connector:
Name : MODULE-BODY CONTROL C3
Color : BLACK/NATURAL
# of pins : 34
Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 - -
7 M27 18YL/LB RAIL LAMPS DRIVER
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 D54 20WT CAN B BUS (-)
15 - -
16 - -
17 - -
18 W17 20BR/LG REAR WIPER PARK SWITCH SENSE
19 - -
20 - -
21 - -
22 D55 20WT/OR CAN B BUS (+)
23 - -
24 - -
25 L62 18WT/DB RIGHT REAR TURN SIGNAL LAMP DRIVER
26 N4 20DB/YL FUEL LEVEL SIGNAL 1
27 N5 20DB/WT FUEL LEVEL SIGNAL 2
28 - -
29 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
30 D64 20WT/LB CAN C BUS (-)
31 D65 20WT/LG CAN C BUS (+)
32 L61 18LG/WT LEFT FRONT TURN SIGNAL LAMP DRIVER
33 L63 18DG/WT LEFT REAR TURN SIGNAL LAMP DRIVER
34 L60 18WT/TN RIGHT FRONT TURN SIGNAL LAMP DRIVER
Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25

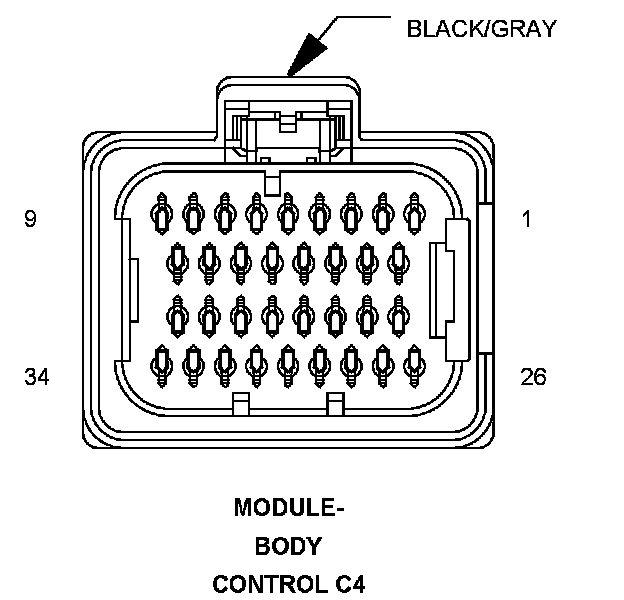

Connector:
Name : MODULE-BODY CONTROL C4
Color : BLACK/GRAY
# of pins : 34
Pin Circuit Description
1 - -
2 - -
3 - -
4 D54 20WT CAN B BUS (-)
5 - -
6 G69 22VT/WT VTSS INDICATOR DRIVER
7 - -
8 - -
9 - -
10 D65 20WT/LG CAN C BUS (+)
11 D64 20WT/LB CAN C BUS (-)
12 D55 20WT/OR CAN B BUS (+)
13 X920 22GY/OR RADIO CONTROL MUX RETURN
14 G900 22OR/VT IGNITION SWITCH SENSE RETURN
15 D71 20WT/DB DIAGNOSTIC CAN C (-)
16 D72 20WT/LB DIAGNOSTIC CAN C (+)
17 - -
18 G150 22VT/BR INSTRUMENT CLUSTER WAKE UP SIGNAL
19 - -
20 - -
21 - -
22 G902 20VT/OR MULTI-FUNCTION SWITCH MUX RETURN
23 L306 20LB/WT RIGHT TURN SWITCH SENSE
24 - -
25 - -
26 - -
27 - -
28 L161 20WT/LG LEFT TURN SIGNAL
29 L160 22WT/TN RIGHT TURN SIGNAL
30 - -
31 W35 22BR/LG FRONT WIPER HIGH/LOW SWITCH SENSE
32 B27 20DG/WT TRACTION CONTROL SWITCH SENSE
33 - -
34 - -

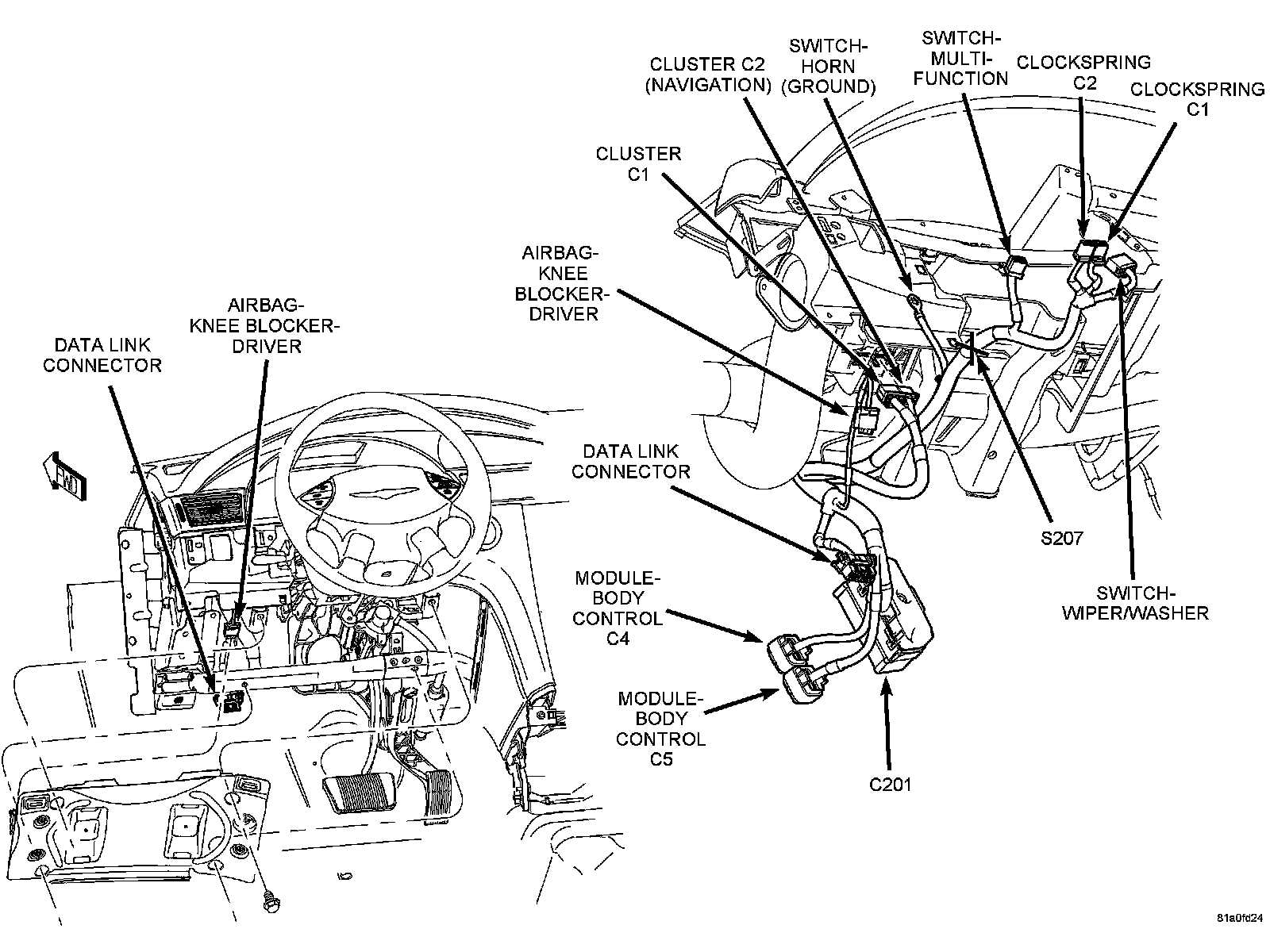

Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25

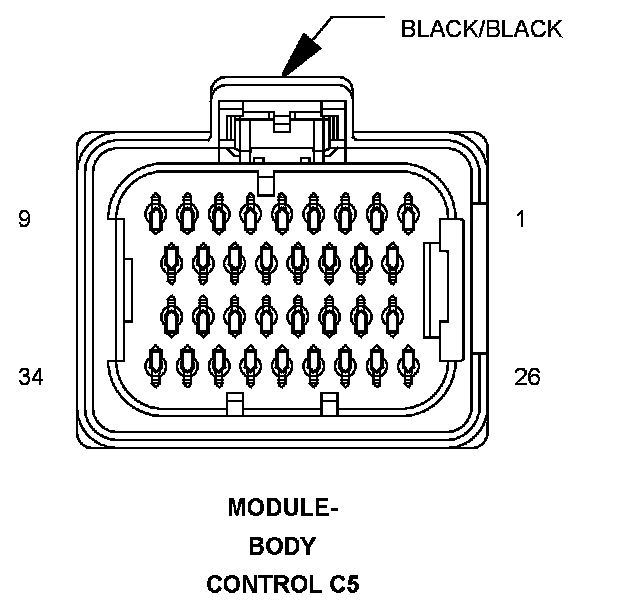

Connector:
Name : MODULE-BODY CONTROL C5
Color : BLACK/BLACK
# of pins : 34
Pin Circuit Description
1 L91 20WT/DB HAZARD SWITCH SENSE
2 W33 22BR/DG FRONT WASHER SIGNAL
3 W26 20BR/DB REAR WIPER SWITCH MUX
4 - -
5 L305 22WT/LB LEFT TURN SWITCH SENSE
6 - -
7 L87 20WT/OR FRONT FOG SWITCH SENSE
8 L37 20WT/BR HIGH BEAM SWITCH SENSE
9 - -
10 G20 22VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 - -
17 L900 22WT/YL HEADLAMP SWITCH MUX RETURN
18 W52 22BR/YL FRONT WIPER SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 L38 20DB/WT OPTICAL HORN SIGNAL
24 - -
25 - -
26 - -
27 E2 22OR/BR PANEL LAMPS DIMMER SIGNAL
28 - -
29 - -
30 - -
31 L307 22BR/WT HEADLAMP SWITCH MUX SENSE
32 W27 22DB/BR REAR WIPER SWITCH DELAY
33 - -
34 X20 22GY/WT RADIO CONTROL MUX
Component Location - 14
Component Location - 18
Component Location - 21
Component Location - 25
