Blower Motor Resistor

Component ID: 235
Component : RESISTOR-BLOWER MOTOR

Connector:

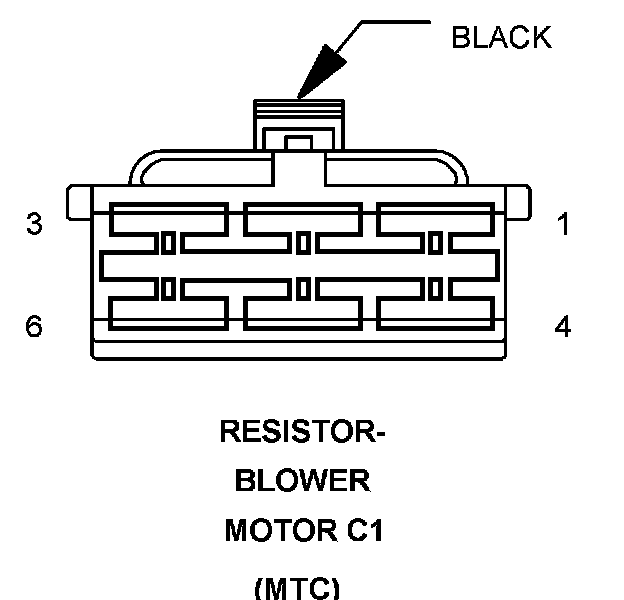

Name : RESISTOR-BLOWER MOTOR C1
Color : BLACK
# of pins : 6
Qualifier : (MTC)




Pin Circuit Description
1 - -
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
3 C73 14DB/VT BLOWER MOTOR M2 DRIVER
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
5 C72 16DB/OR BLOWER MOTOR M1 DRIVER
6 C71 16DB/BR BLOWER MOTOR LOW DRIVER

Component Location - 14




Component Location - 15






Connector:

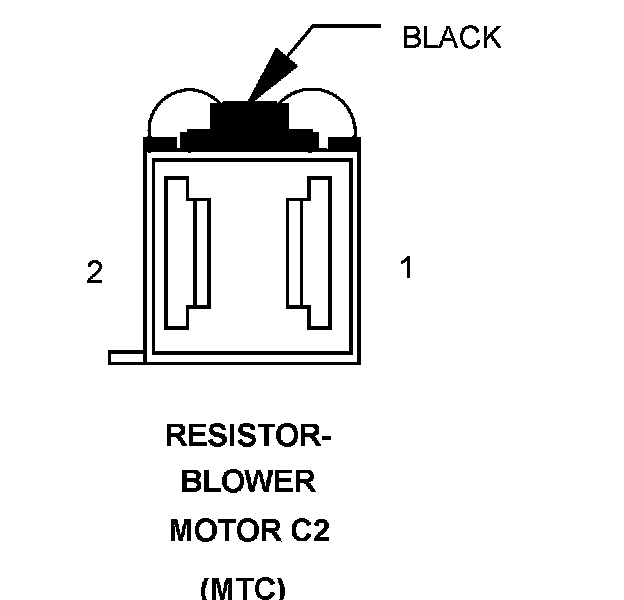

Name : RESISTOR-BLOWER MOTOR C2
Color : BLACK
# of pins : 2
Qualifier : (MTC)




Pin Circuit Description
1 C112 12DG BLOWER SUPPLY
2 C113 12BK BLOWER DRIVER

Component Location - 14




Component Location - 15
