Amplifier, Sound System

Component ID: 11
Component : AMPLIFIER-RADIO

Connector:

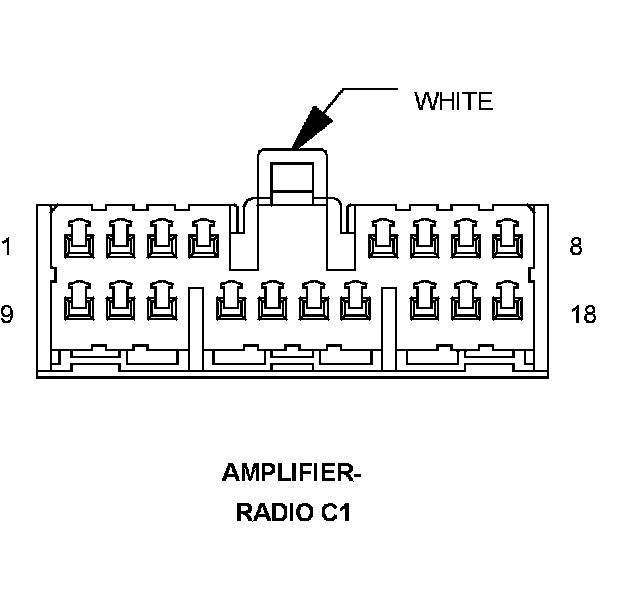

Name : AMPLIFIER-RADIO C1
Color : WHITE
# of pins : 18




Pin Circuit Description
1 A116 16YL/RD FUSED B(+)
2 - -
3 X300 18GY/BR AMPLIFIED SUBWOOFER 1 (+)
4 X391 18DG/WT AMPLIFIED SUBWOOFER 2 (-)
5 X205 18GY/LG AMPLIFIED LEFT REAR DOOR SPEAKER (+)
6 X200 18GY/DB AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (+)
7 X202 18DG/VT AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
8 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
9 A116 16YL/RD FUSED B(+)
10 - -
11 X390 18DG/BR AMPLIFIED SUBWOOFER 1 (-)
12 X301 18GY/WT AMPLIFIED SUBWOOFER 2 (+)
13 X296 18DG/GY AMPLIFIED RIGHT REAR DOOR SPEAKER (-)
14 X206 18DG/LG AMPLIFIED RIGHT REAR DOOR SPEAKER (+)
15 X295 18GY/DG AMPLIFIED LEFT REAR DOOR SPEAKER (-)
16 X290 18GY/OR AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER (-)
17 X292 18DG/YL AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
18 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)

Component Location - 31




Component Location - 33




Component Location - 34






Connector:

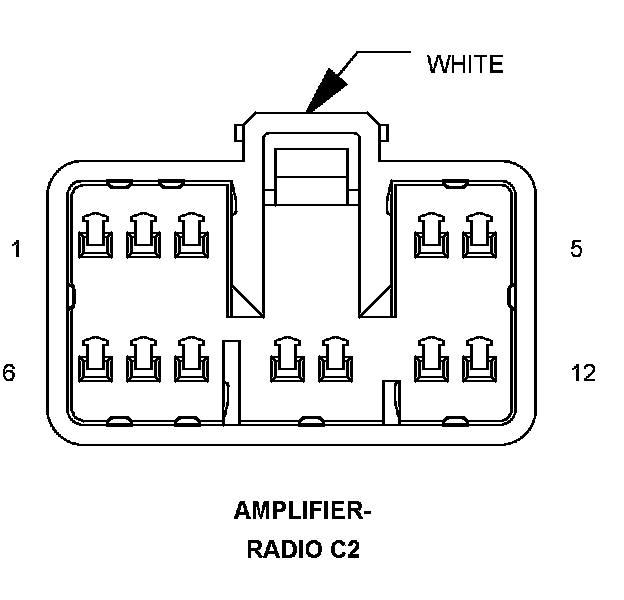

Name : AMPLIFIER-RADIO C2
Color : WHITE
# of pins : 12




Pin Circuit Description
1 X53 20DG RADIO LEFT AUDIO (+)
2 X55 20DG/BR RADIO LEFT AUDIO (-)
3 X704 20DG/YL RIGHT AUDIO OUTPUT
4 Z513 16BK GROUND
5 F316 20PK/OR FUSED ACCESSORY RELAY OUTPUT
6 X56 20GY/BR RADIO RIGHT AUDIO (-)
7 X54 20GY RADIO RIGHT AUDIO (+)
8 X703 20DG/OR LEFT AUDIO OUTPUT
9 X400 20GY/WT NAVIGATION AUDIO (+)
10 X940 20GY/LB NAVIGATION AUDIO (-)
11 Z516 16BK/GY GROUND
12 D25 20WT/VT PCI BUS

Component Location - 31




Component Location - 33




Component Location - 34
