Actuator-Recirculation Door

Component ID: 4

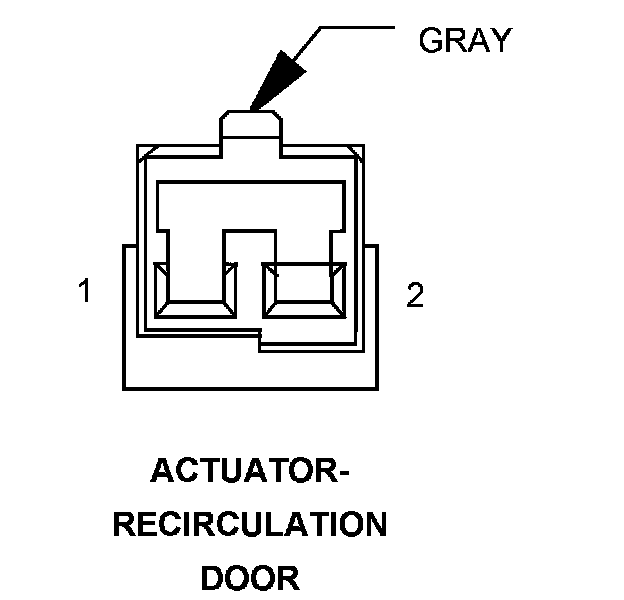

Component : ACTUATOR-RECIRCULATION DOOR

Connector:
Name : ACTUATOR-RECIRCULATION DOOR
Color : GRAY
# of pins : 2




Pin Circuit Description
1 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
2 C132 20DB/YL RECIRCULATION DOOR DRIVER (B)
2 C34 20DB/LB COMMON DOOR DRIVER (B)

Component Location - 20
